  • 96W Mini Triac Dimmable Electronic Transformer Junction Box
    96W Mini Triac Dimmable Electronic Transformer Junction Box
    96W Mini Triac Dimmable Electronic Transformer Junction Box
    96W Mini Triac Dimmable Electronic Transformer Junction Box
    96W Mini Triac Dimmable Electronic Transformer Junction Box
    96W Mini Triac Dimmable Electronic Transformer Junction Box
    96W Mini Triac Dimmable Electronic Transformer Junction Box
    96W Mini Triac Dimmable Electronic Transformer Junction Box
    ❤ Add to collection
  • 96W Mini Triac Dimmable Electronic Transformer Junction Box

    120Vac
    0.01-100%
    >0.95
    Triac Dim.
    constant voltage
    IP54
    5 years
    UL,FCC,SELV

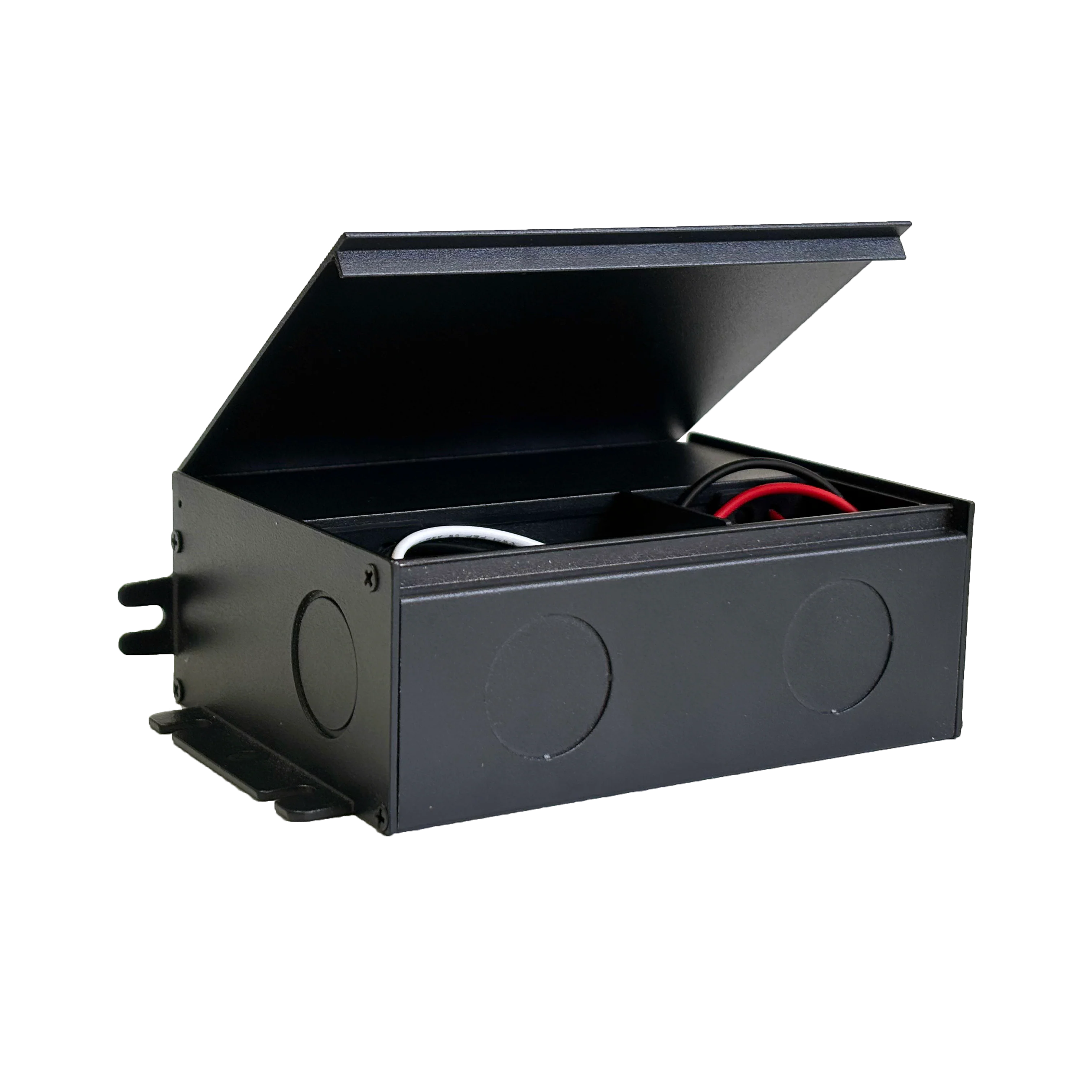

    This 96W 12V/24V high-efficiency transformer is compact and designed to smoothly dim various lighting applications. It features an easy-to-install junction box for quick integration into any lighting system and provides precise triac dimming.

    • U.S.$0.00
      U.S.$0.00
      U.S.$0.00
      U.S.$0.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.000KG
    • Quantity:
Description

This 96W 12V/24V high-efficiency transformer is compact and designed to smoothly dim various lighting applications. It features an easy-to-install junction box for quick integration into any lighting system and provides precise triac dimming.

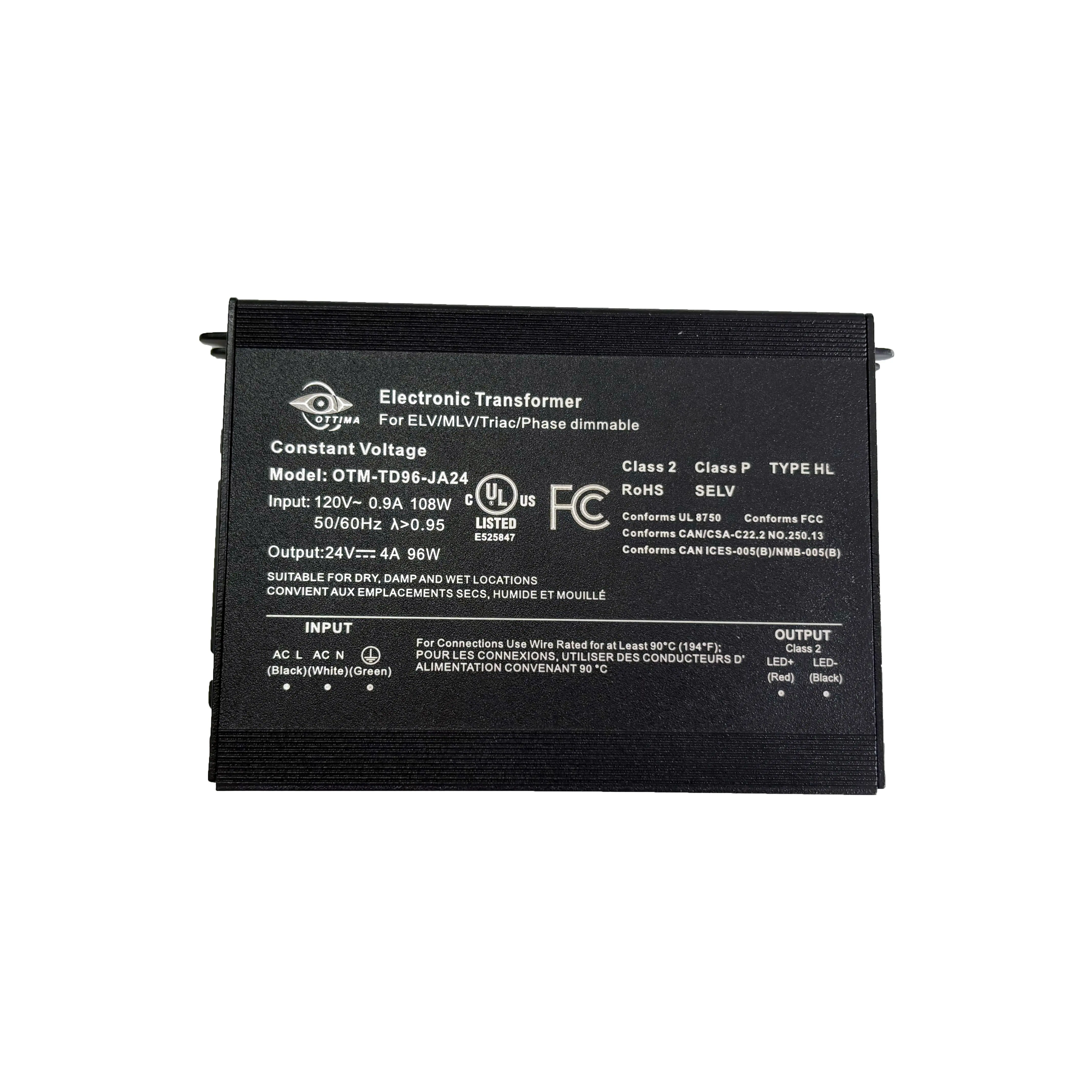

96W 12V/24V Triac/ ELV/MLV Dimming Electronic Transformer

Unlock advanced control for your LED lighting with our high-performance OTM-TD96-JA series 96W Dimmable LED Transformer. This versatile constant voltage power supply seamlessly integrates with Triac, Electronic Low Voltage (ELV), and Magnetic Low Voltage (MLV) dimming systems, offering a broad 0-100% dimming range. Designed to eliminate common compatibility issues, it works flawlessly with popular dimmers on the market.


This LED transformer boasts comprehensive certifications including UL Listed, Class 2, Class P, Type HL, and SELV, guaranteeing exceptional safety and reliability. Its robust construction makes it suitable for use in dry, damp, and wet locations , making it a perfect fit for a wide array of LED strip/tape/module applications in residential and commercial settings. It ensures clean and stable power delivery with an efficient power factor of ≥0.99 and low total harmonic distortion (THD<20%@100% load). Built with essential protections against short circuit and overload , and supported by a generous 5-year warranty, this 96W dimmable LED driver offers enduring performance and peace of mind for your lighting installations. Its compact dimensions (126.4x80x40.4 mm)  allow for versatile integration.


Specification

Model Number

OTM-TD96-JA24

OUTPUT

Rated Power

96W

Rated Voltage

24V

Rated Current

4.0A

Voltage Tolerance

±1.5V

INPUT

Voltage Range

120V

Frequency Range

47-63Hz

Power Factor(typ.)

0.94@120VAC

Total Harmonic Distortion

THD< 20%(@100% load)

EfficiencyTyp.

88%@120VAC

AC CurrentTyp.

0.93A

Leakage Current

<0.5mA/ 120VAC

PROTECTION

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

Over Load

Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

Working Temp.

Tc =-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)

Working humidity

20 ~ 95% RH non-condensing

Storage temp., Humidity

-40 ~ +90, 10 ~ 95% RH

Temp .coefficient

±0.03%/℃050℃

Vibration

10500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

SAFETY & EMC

Safety standards

UL8750, Class 2

Withstand voltage

I/P-O/P:1.88KVAC

OTHERS

Weight

0.175/kg

Dimension

See Mechanical Specification

Packing

36*24*19 cm (20PCS/CTN )


Mechanical Specification

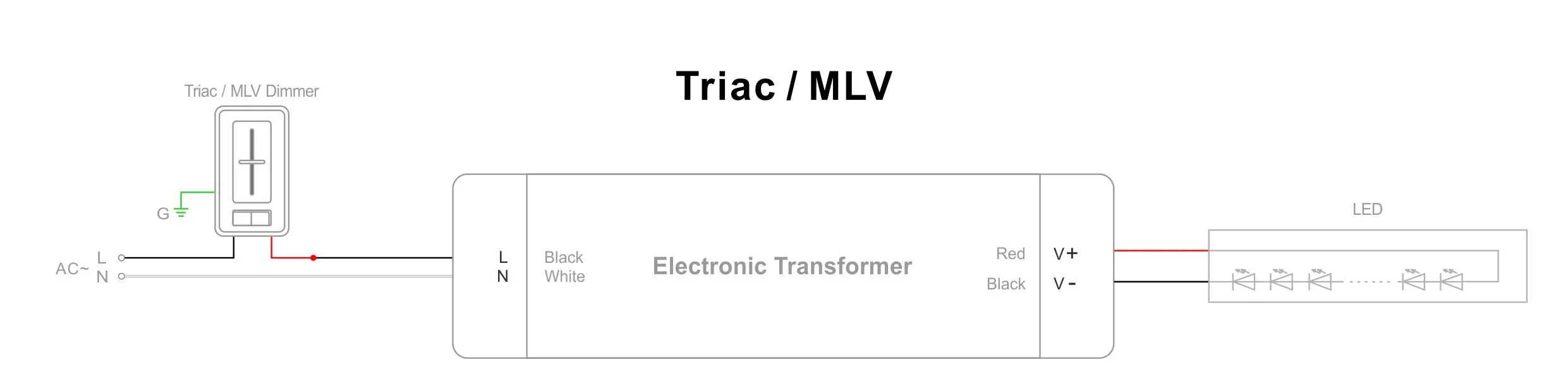

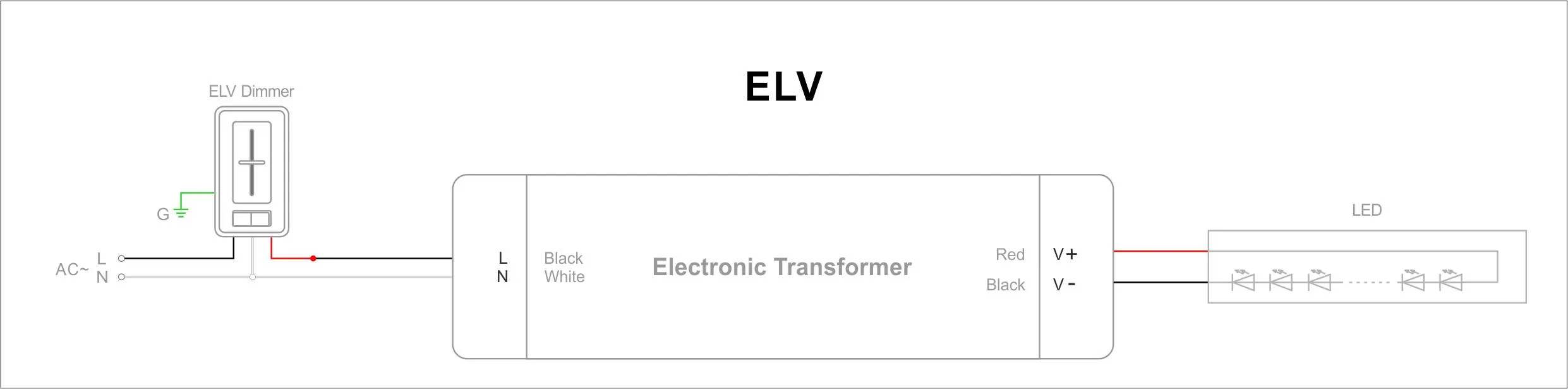

Wiring Diagram

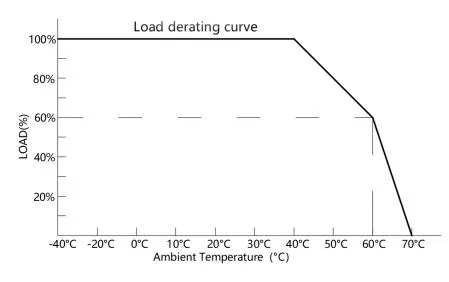

Load vs Ambient Temperature
