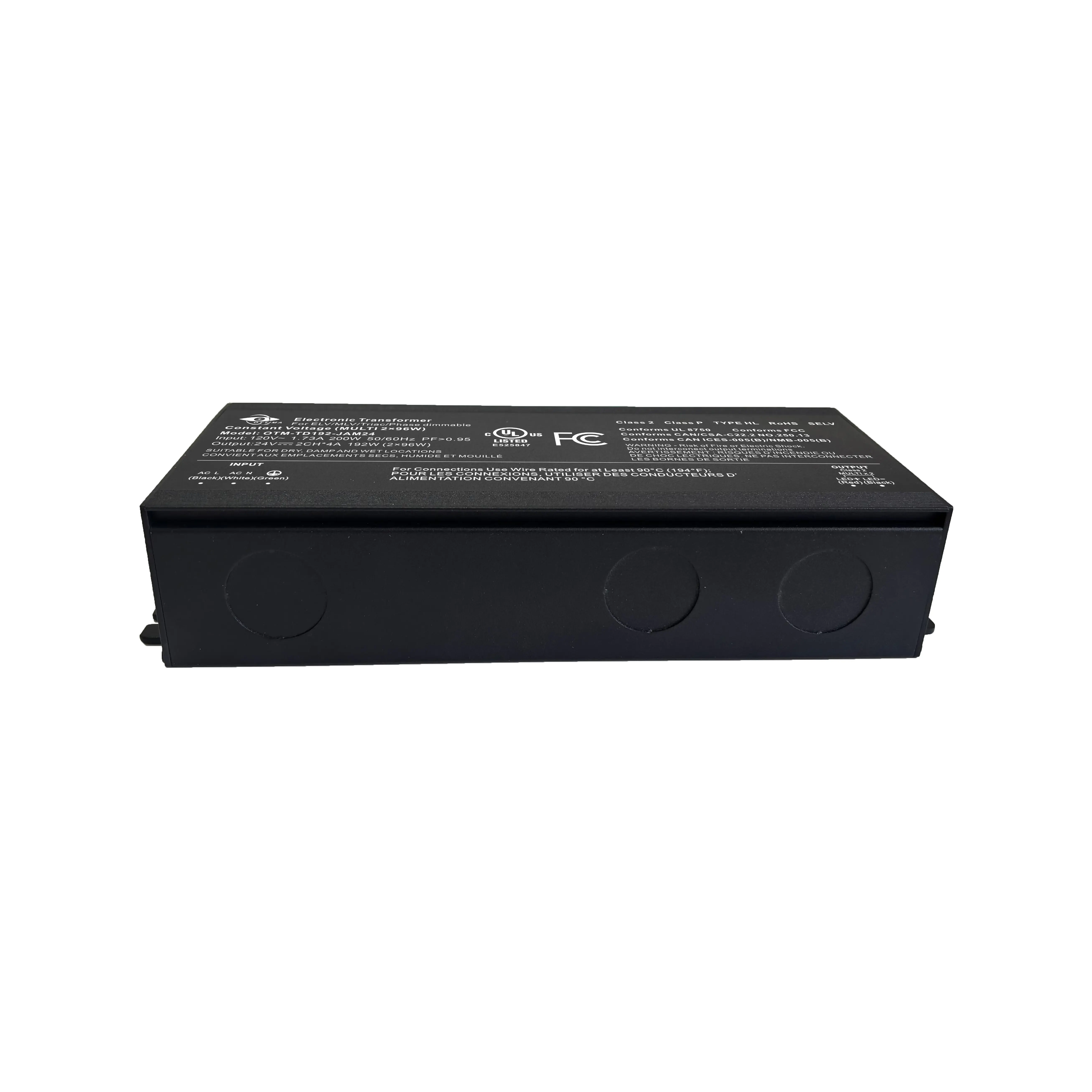

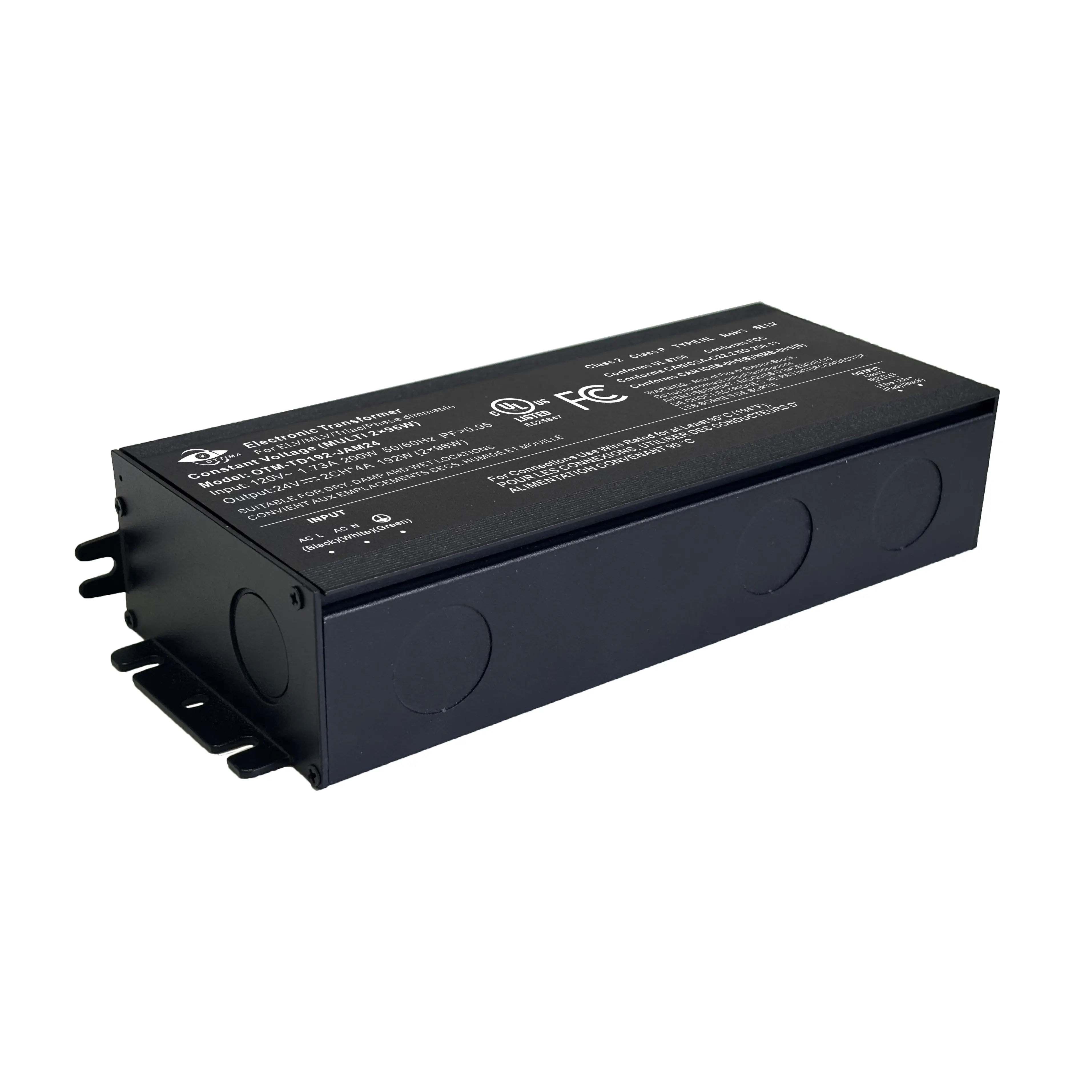

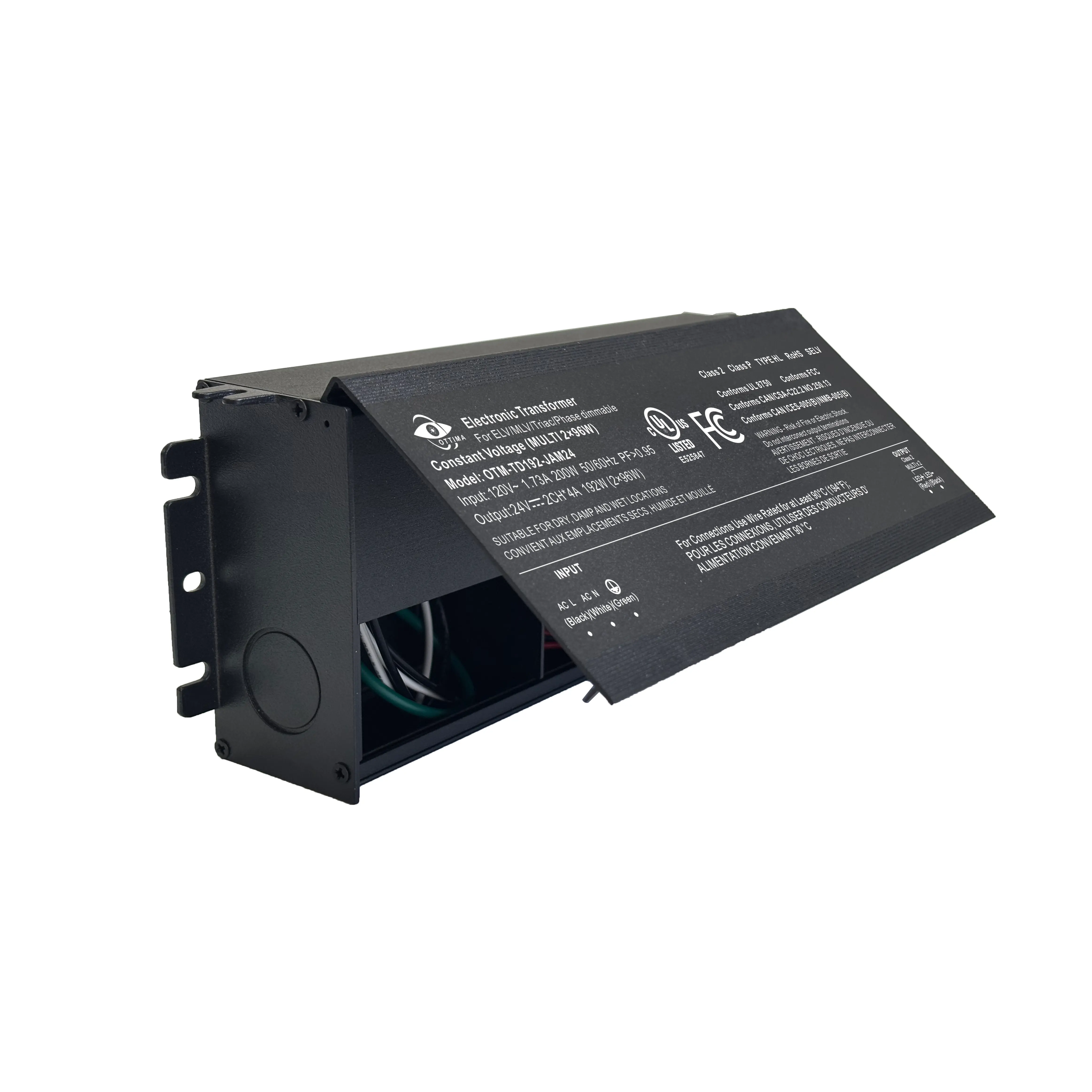

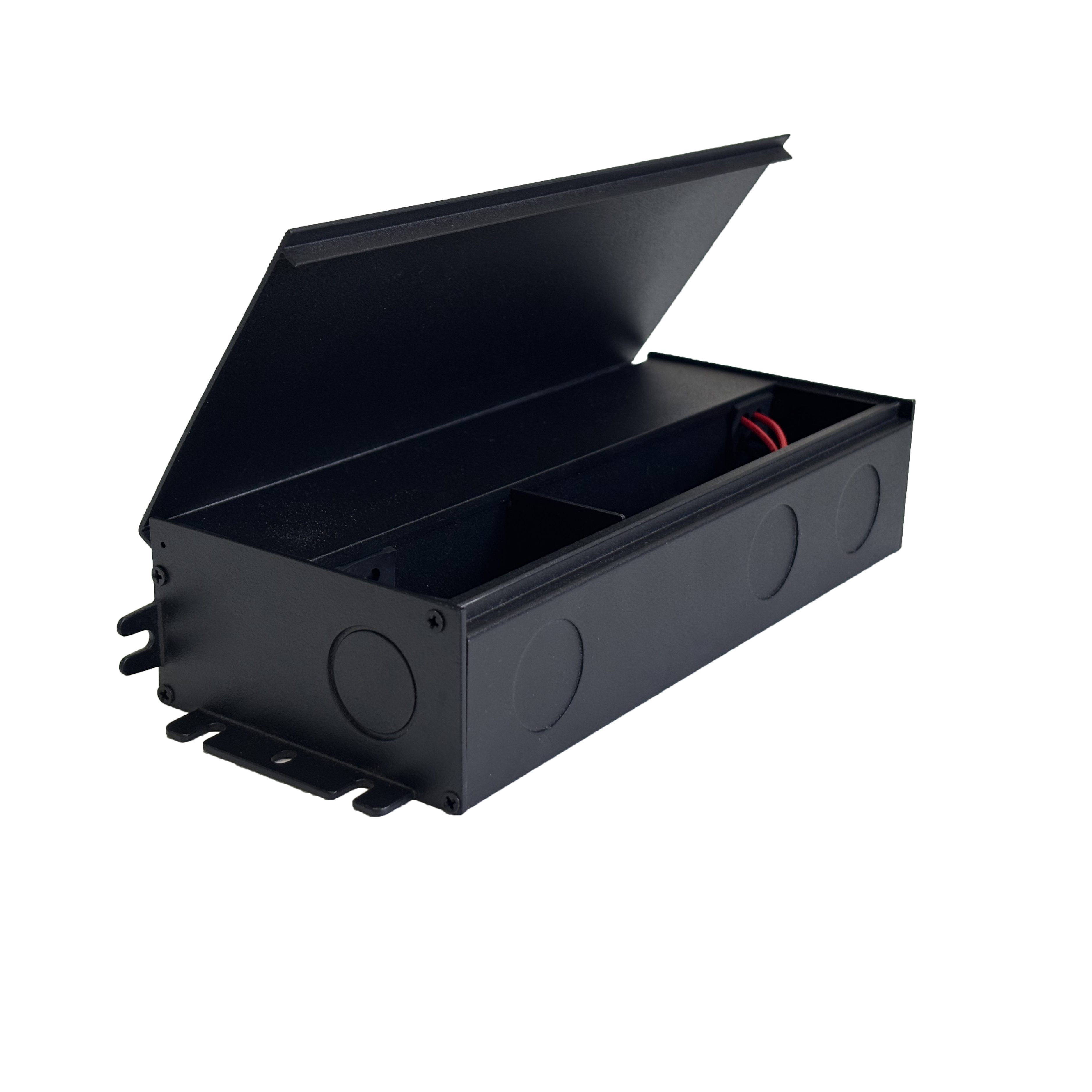

This 192W (96W x 2C) Triac/ELV/MLV Dimmable LED Transformer Junction Box is smaller than traditional junction boxes, This compact yet powerful device ensures smooth, flicker-free dimming for a wide range of lighting applications. Designed with advanced Triac technology, it provides precise dimming performance, enhancing the ambiance of any space.
Spec Sheet Download
192W (96W x 2C) Triac/ELV/MLV Dimmable LED Transformer
Elevate your lighting control with the versatile OTM-TD192-JAM24 series 192W (96W x 2C) Dimmable LED Transformer. This high-performance, multi-channel constant voltage power supply is expertly engineered to simultaneously control two independent 96W LED loads, providing exceptional flexibility for dual-zone lighting designs. It offers precise 0-100% flicker-free dimming, seamlessly integrating with Triac, Electronic Low Voltage (ELV), and Magnetic Low Voltage (MLV) dimmer systems. Its broad compatibility extends to popular dimmers like Lutron-CL and Diva series, ensuring effortless control and eliminating wiring complexities.
This 24V multi-output LED transformer proudly carries comprehensive certifications including UL Listed, Class 2, Class P, Type HL, and SELV, guaranteeing top-tier safety and reliability in the US market. Its robust design makes it ideal for use in dry, damp, and even wet locations, perfectly suited for LED strip/tape/module installations in both residential and commercial settings. Featuring an efficient power factor of 0.94 and low total harmonic distortion (THD<20%@100% load), it ensures clean and stable power delivery. Crucially, its short circuit and overload protections feature a hiccup mode with automatic recovery once the fault condition is removed. Backed by a substantial 5-year warranty, this 192W multi-channel LED driver promises enduring performance and peace of mind for your versatile 24V lighting solutions. Its compact form factor (197.4x80x40.4 mm) allows for flexible integration.
Application:
• LED strip/ LED tape/ LED module
• Residential Lighting
• Commercial Lighting
Specification
Model Number | OTM-TD192-JAM24 |
OUTPUT |
Rated Power | 192W（96W*2C） |
Rated Voltage | 24V |
Rated Current | 8A(4A*2C) |
Voltage Tolerance | ±1.5V |
INPUT |
Voltage Range | 120V |
Frequency Range | 47-63Hz |
Power Factor(typ.) | 0.94@120VAC |
Total Harmonic Distortion | THD< 20%(@100% load) |
Efficiency（Typ.） | 88%@120VAC |
AC Current（Typ.） | 1.73A |
Leakage Current | <0.5mA/ 120VAC |
PROTECTION |
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
ENVIRONMENT |
Working Temp. | Tc =-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
Working humidity | 20 ~ 95% RH non-condensing |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
Temp .coefficient | ±0.03%/℃（0～50℃） |
Vibration | 10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
SAFETY & EMC |
Safety standards | UL8750, Class 2 |
Withstand voltage | I/P-O/P:1.88KVAC |
OTHERS |
Weight | 0.55/kg |
Dimension | See Mechanical Specification |
Packing | 50*24*19 cm (20PCS/CTN ) |
Mechanical Specification
Wiring Diagram
Load vs Ambient Temperature
To extend their life, please refer to the Derating Curve and derate according to the temperature.
Warm tips :
All Electronic Transformer meet the harmonic emissions requirements of ANSI C82.77-10.
