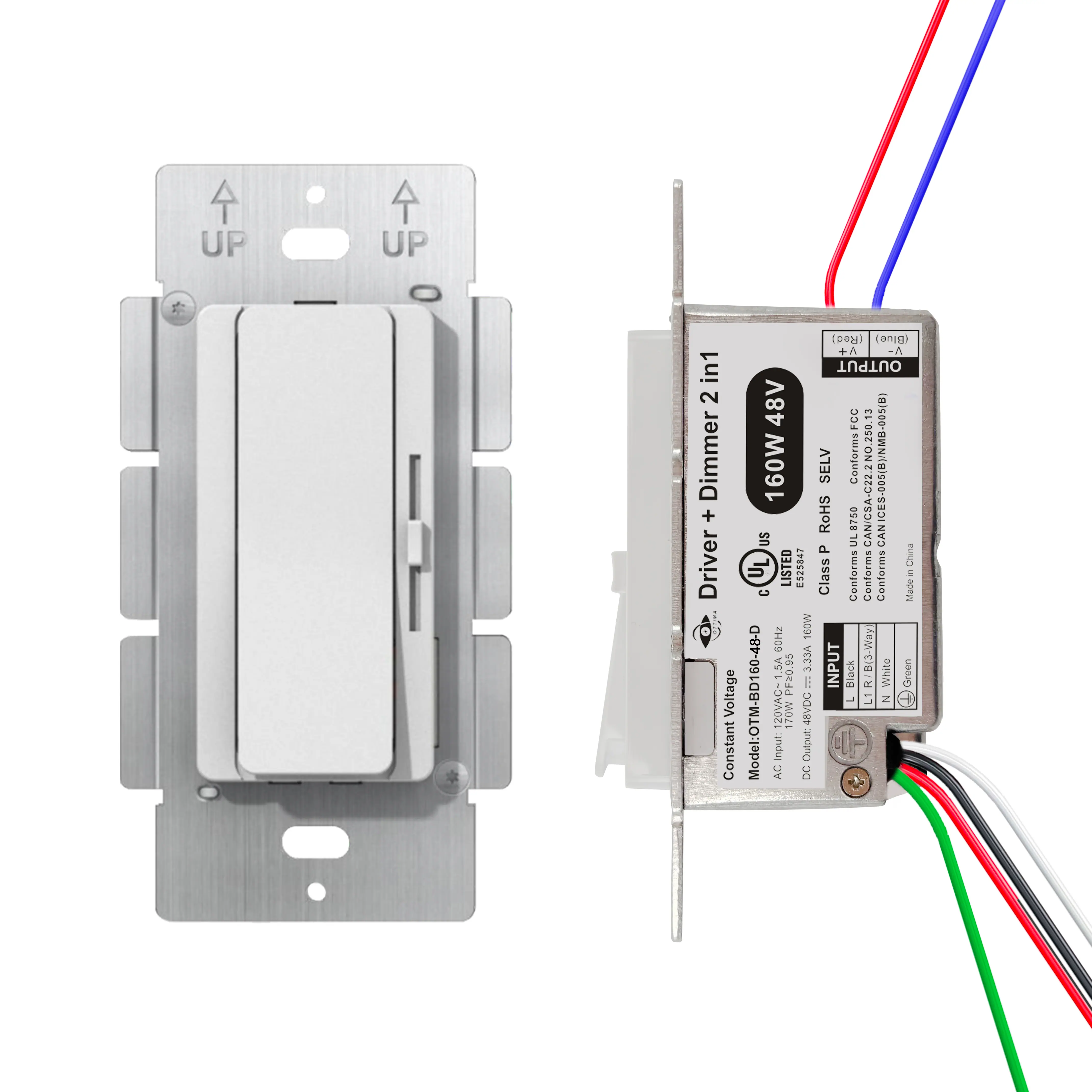

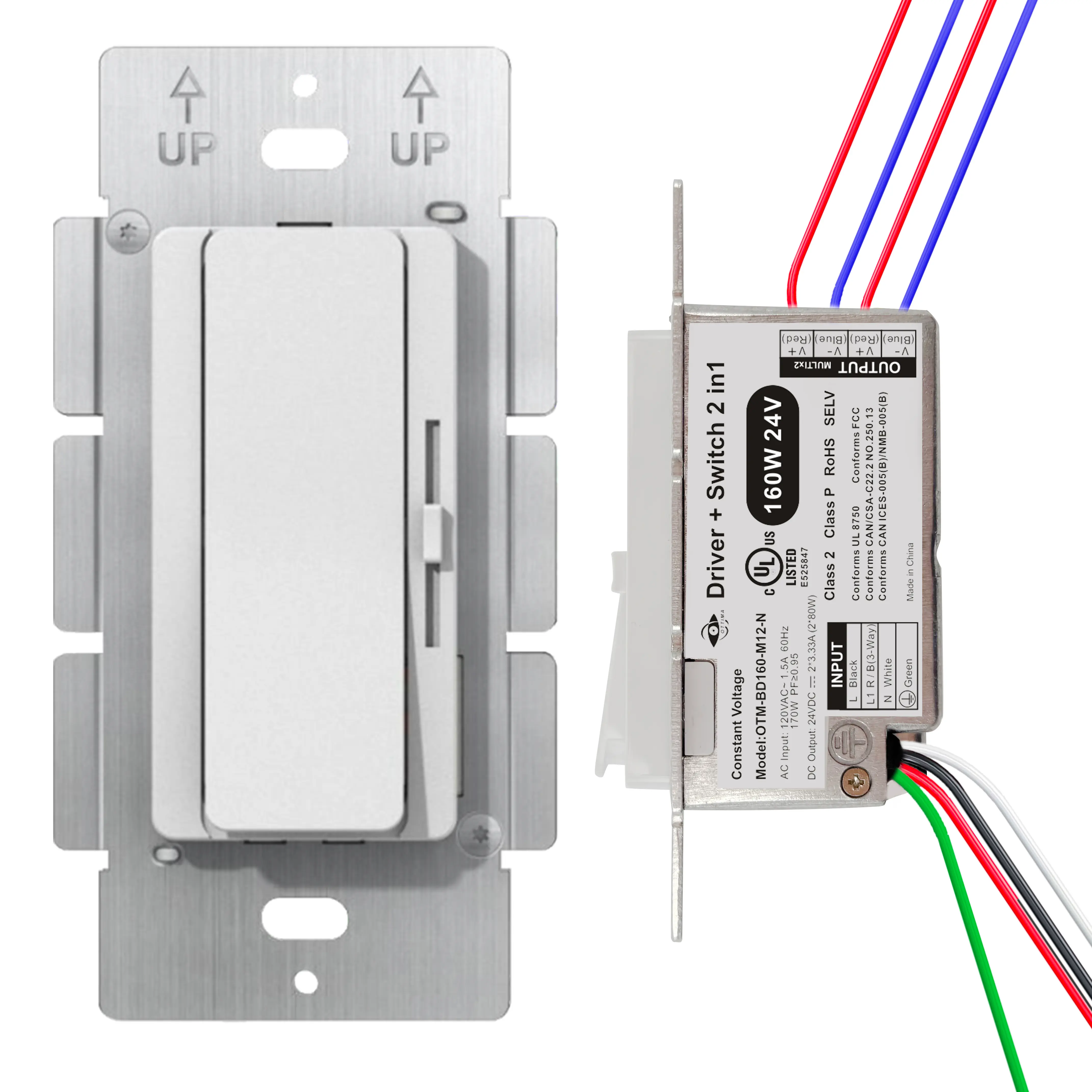

160W LED Driver + Dimmer Switch 2 in 1
Experience superior lighting control and simplified installation with the robust 160W Dimmable LED Driver + Dimmer 2-in-1 Unit. Engineered for demanding LED applications, this integrated constant voltage power supply delivers an impressive 160W output. It offers versatile 24V or 48V DC options, with the ability to fine-tune the output voltage via an integrated knob. Enjoy exceptionally smooth, flicker-free dimming across a wide range from 0.3% to 100% , thanks to its advanced 16KHz PWM output and a precise gamma 2.2 dimming curve.
This innovative unit specifically eliminates common compatibility issues between LED drivers and traditional dimmer switches, providing a streamlined, all-in-one solution for your LED installations. It holds comprehensive UL, cUL, FCC, Class P, SELV, RoHS, and Reach certifications , guaranteeing top-tier safety, efficiency, and compliance for use in dry and damp locations across the US. Built-in active PFC ensures high power factor (≥0.99 at full load). Equipped with multiple protection features including short circuit, over load, and over temperature safeguards , it ensures reliable and long-lasting operation. This compact unit (105x54x52mm) is cooled by free air convection and comes with a reassuring 5-year warranty.
Model | OTM-BD160-24-D | OTM-BD160-48-D |
Certificate | UL / cUL / FCC / Class P / SELV / RoHS / Reach |
Output | DC Rate Voltage | 24V (24V-26V adjust by knob) | 48V (48V-50V adjust by knob) |
| Voltage Tolerance | ±0.5V |
| Load Regulation | ≤1% | ≤1% |
| Line Regulation | ≤0.5% |
| Rated current | 6.67A | 3.33A |
| Rated power | 160W | 160W |
Input | Voltage Range | 120VAC |
| Frequency Range | 60Hz |
| Power Factor @ full load | ≥0.99 |
| THD(Typ.) @ full load | ≤10% |
| Efficiency @ full load | 94.5% | 95% |
| AC Current (Max.) | 1.5A | 1.5A |
| Inrush Current (Typ.) | 54A, 290us@50% Ipeak |
| Leakage current | <0.5mA |
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over Load | ≥110% Constant current mode, recovers automatically after fault condition is removed |
| Over temperature | Shell surface temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling |
Environment | Working TEMP. | -40~+60℃ (see below derating curve) |
| Working Humidity | 20 - 95%RH non-condensing |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) |
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72 min. each along X,Y,Z axes |
Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 (US) |
| Withstand voltage | I/P-O/P:1.8KVAC I/P-F/G:1.8KVAC O/P-F/G:0.5KVAC (US) |
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH |
| EMC Immunity | FCC/ICES do not request this test (US) |
| EMC Emission | FCC Part15 Subpart B ANSI C63.4:2014 (US) |
Others | Net Weight | 0.27KG |
| Dimension | 105*54*51mm / 4.134"x2.126"x1.996" (Inch) |
| Packing |
|
Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance and load regulation . |
Derating Curve (Output power VS Ambient TEMP)
Derating Curve (Output power VS Ambient TEMP)
1.To extend their life, please refer to the Derating Curve and derate according to the temperature.
2.The output current of the LED driver should be selected according to the rated current of the lamp and the ambient temperature.
Normally, we recommend the power supply to reserve a certain amount of load to extend LED driver's life.
Mechanical Specification
American Wire Gauge |
Input wires | Black cable (L), Red black cable (L1) , White cable (N) and Green cable (FG) (4*18AWG) |
Output wires |
Red cable (V+), Blue cable (V-) (12V:2*16AWG, 24V/48V:2*18AWG) |
Warm tips:
1. Any other requests for, we can customize.
2. Please ensure that the connection is correct.
Connecting Diagram
① For standard dimming system
② For 3-way dimming system
Note: Dimmer's panel is not replaceable.
Knob to adjust the voltage
MANUAL VOLTAGE TUNING
(+/-2V) FOR OUTPUT OPTIMIZATION
12V output volt.: 12-13.5V
24V output volt.: 24-26V
48V output volt.: 48-50V
Instructions
1. This driver+dimmer 2 in 1 should be installed by qualified and professional person.
2. Please make sure the driver+dimmer 2 in 1 is installed with adequate ventilation around it to allow for heat dissipation.
3. Ensure that connection is correct to avoid LED light or driver+dimmer 2 in 1 be damaged.
4. If the driver+dimmer 2 in 1 cannot work normally, don’t maintain privately.
Have any questions, please contact us
