This innovative 120W CCT Dimmable LED Driver and Dimmer Switch 2-in-1 Unit offers superior control and simplified installation for LED lighting projects. It cleverly integrates a high-efficiency constant voltage LED driver with convenient dimming functionality, effectively eliminating compatibility issues between drivers and switches.
Spec Sheet Download

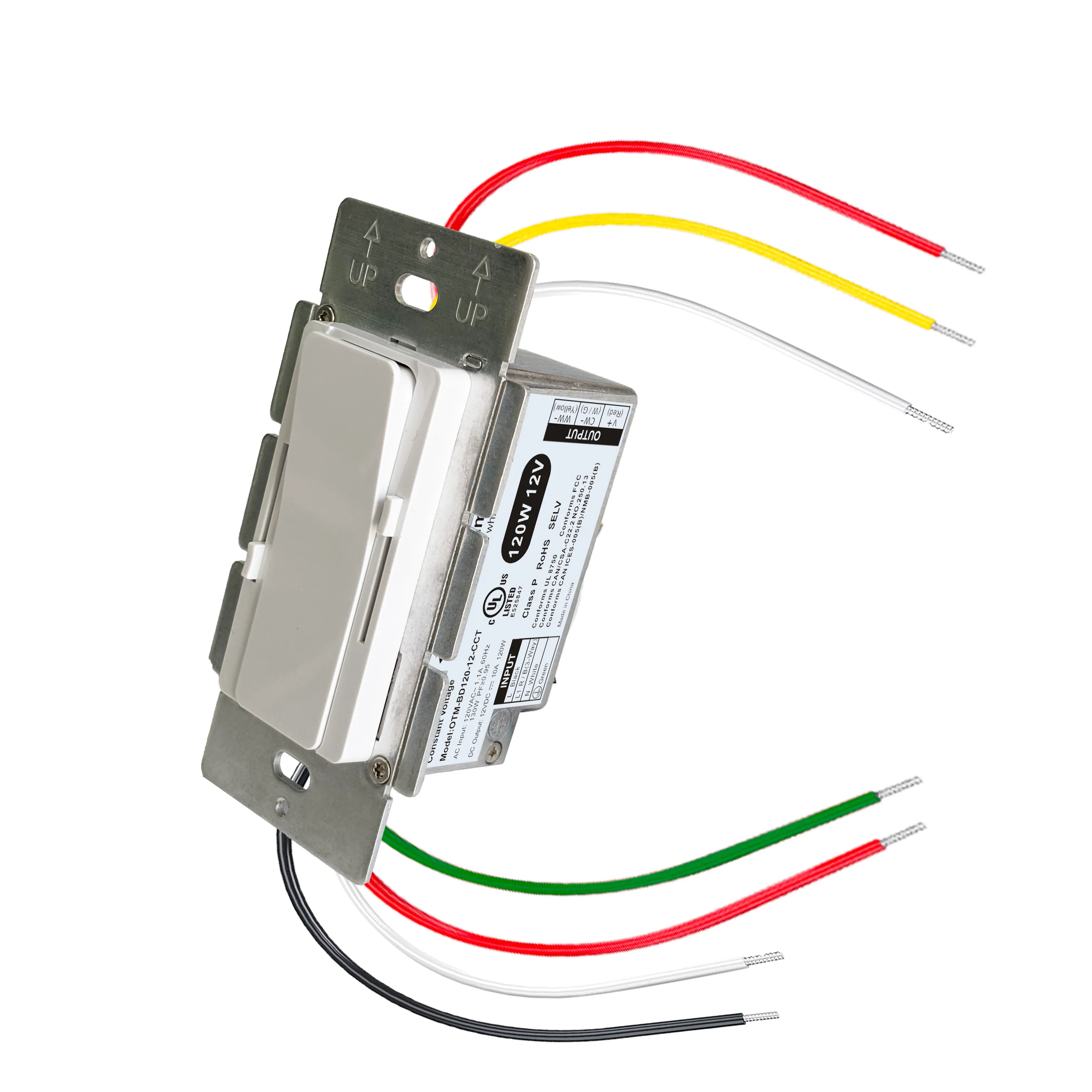

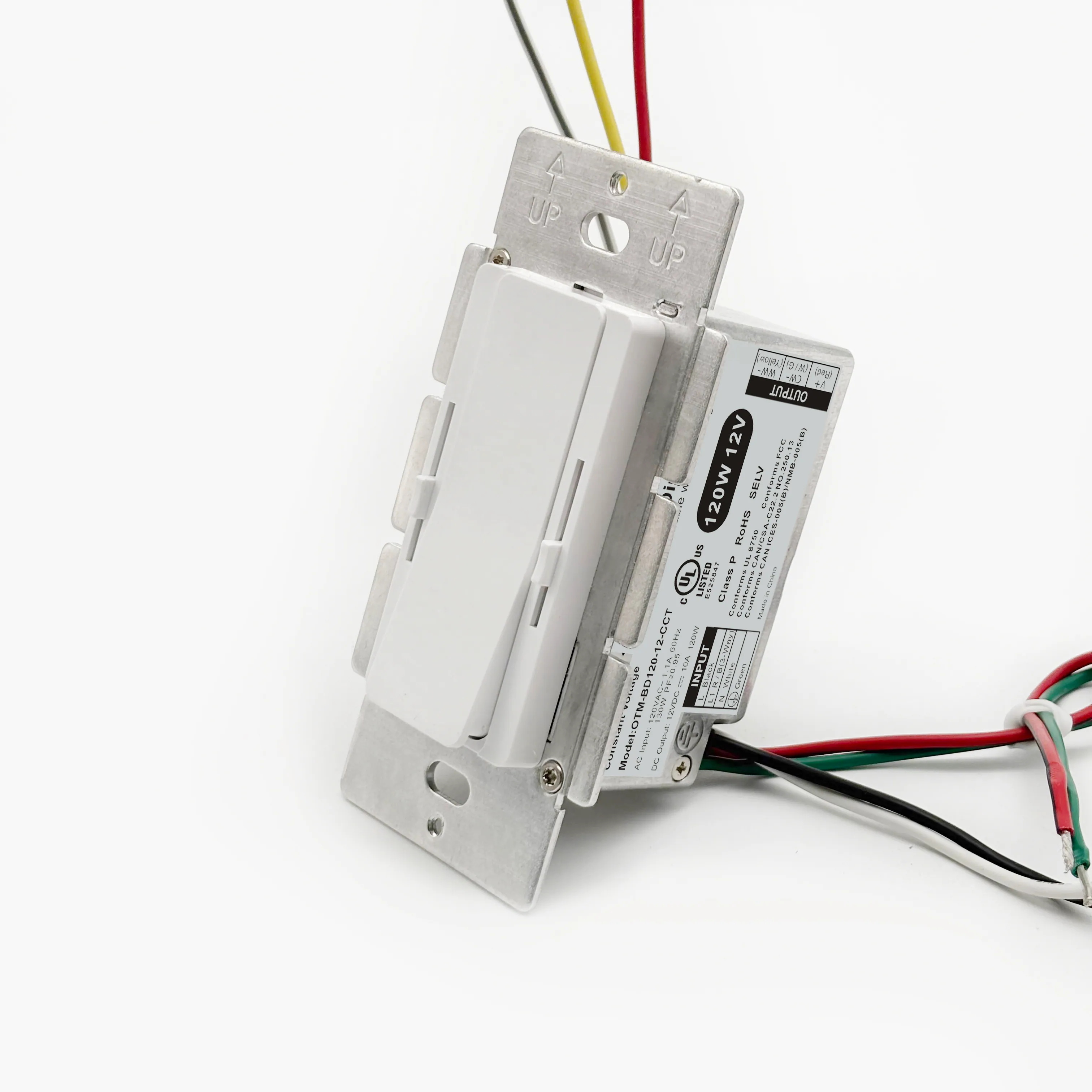

120W LED Driver + Dimmer Switch 2 in 1
This innovative 120W CCT Dimmable LED Driver and Dimmer Switch 2-in-1 Unit offers superior control and simplified installation for LED lighting projects. It cleverly integrates a high-efficiency constant voltage LED driver with convenient dimming functionality, effectively eliminating compatibility issues between drivers and switches.
The unit provides stable 120W power output and supports 12V, 24V, or 48V DC constant voltage output options. A key feature is its powerful CCT (Correlated Color Temperature) dimming capability, offering 0.3%-100% flicker-free dimming and precise color temperature adjustment. It includes active PFC and holds UL/cUL/FCC certifications, ensuring efficiency, safety, and reliability. With multiple protections like short circuit, overload, and over-temperature, and suitability for dry and damp locations, it's ideal for home and commercial lighting.
Discover our high-performance 120W CCT Dimmable LED Driver and Dimmer Switch 2-in-1 Unit, an innovative product meticulously designed for modern LED lighting systems. It perfectly blends the core functions of an LED driver with a user-friendly dimmer switch, eliminating compatibility issues between drivers and dimming switches and providing unparalleled ease of installation and smooth operation.
12V, 24V, or 48V DC voltage options (output voltage can be fine-tuned by a knob). This ensures broad compatibility with most constant voltage LED fixtures on the market, such as LED strip lights, modules, and under-cabinet lights, guaranteeing a stable and continuous power supply for your lighting system. Its input voltage range is 120VAC, frequency 60Hz , and it features built-in active PFC , achieving an excellent power factor of 0.99 at full load for superior energy efficiency.
Model | OTM-BD120-12-CCT | OTM-BD120-48-CCT | |
Certificate | UL / cUL / FCC / Class P / SELV / RoHS / Reach | ||
Output
| DC Rate Voltage | 12V (12V-13.5V adjust by knob) | 24V (24V-26V adjust by knob) |
Voltage Tolerance | ±0.5V | ||
Load Regulation | ≤1% | ≤1% | |
Line Regulation | ≤0.5% | ||
Rated current | 10A | 5A | |
Rated power | 100W | 100W | |
Input
| Voltage Range | 120VAC | |
Frequency Range | 60Hz | ||
Power Factor @ full load | ≥0.99 | ||
THD(Typ.) @ full load | ≤10% | ||
Efficiency @ full load | 93.3% | 92.0% | |
AC Current (Max.) | 1.1A | 0.93A | |
Inrush Current (Typ.) | 50A, 150us@50% Ipeak | ||
Leakage current | <0.5mA | ||
Protection
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |
Over Load | ≥110% Constant current mode, recovers automatically after fault condition is removed | ||
Over temperature | Shell surface temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling | ||
Environment
| Working TEMP. | -40~+60℃ (see below derating curve) | |
Working Humidity | 20 - 95%RH non-condensing | ||
Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72 min. each along X,Y,Z axes | ||
Safety & EMC
| Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 (US) | |
Withstand voltage | I/P-O/P:1.8KVAC I/P-F/G:1.8KVAC O/P-F/G:0.5KVAC (US) | ||
Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | ||
EMC Immunity | FCC/ICES do not request this test (US) | ||
EMC Emission | FCC Part15 Subpart B ANSI C63.4:2014 (US) | ||
Others
| Net Weight | 0.27KG | |
Dimension | 105*54*51mm / 4.134"x2.126"x1.996" (Inch) | ||
Packing | |||
Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance and load regulation . | ||
Derating Curve (Output power VS Ambient TEMP)
Derating Curve (Output power VS Ambient TEMP)
1.To extend their life, please refer to the Derating Curve and derate according to the temperature.
2.The output current of the LED driver should be selected according to the rated current of the lamp and the ambient temperature.
Normally, we recommend the power supply to reserve a certain amount of load to extend LED driver's life.
Mechanical Specification
American Wire Gauge | |

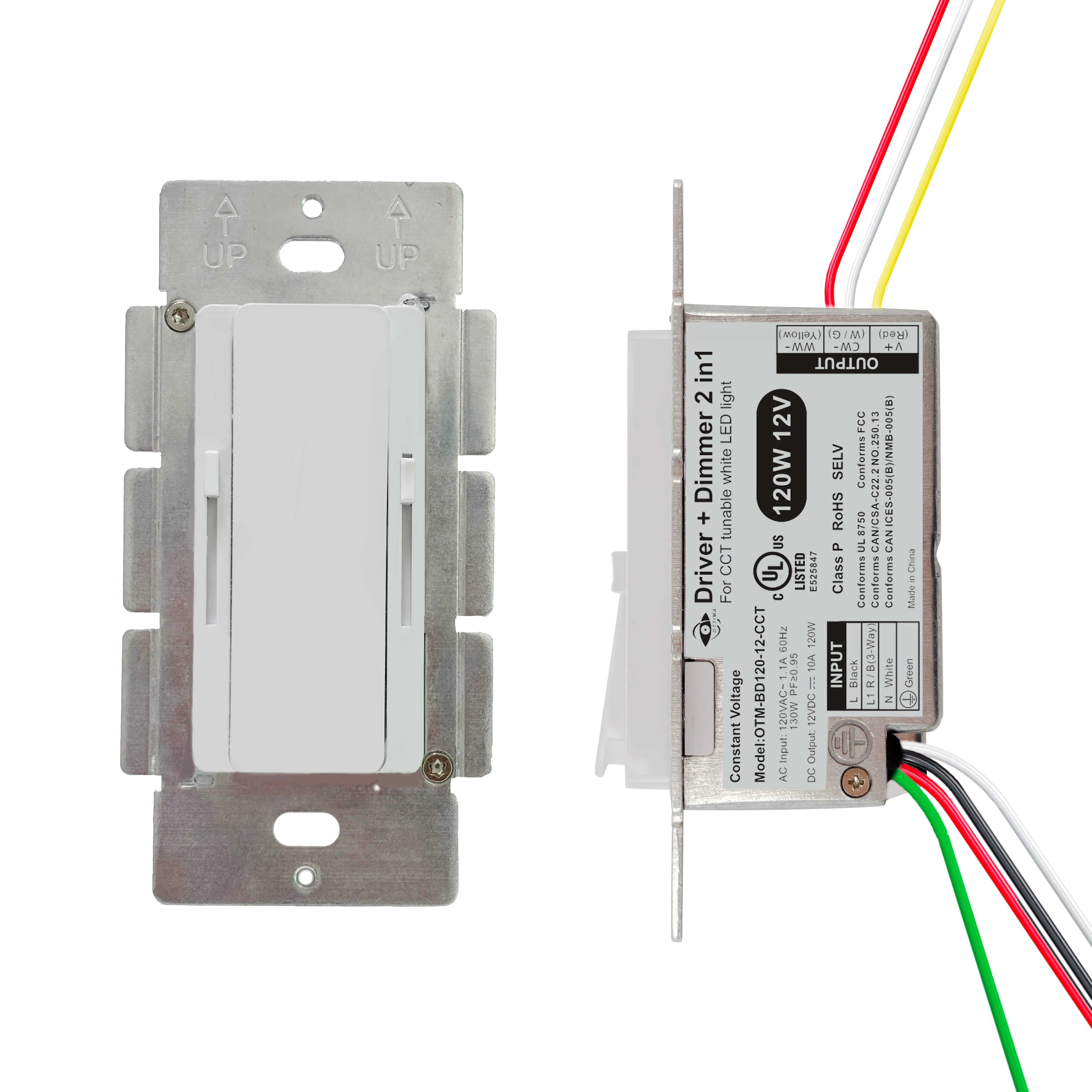

Input wires | Black cable (L), Red black cable (L1) , White cable (N) and Green cable (FG) (4*18AWG) |
Output wires | Red cable (V+) ,White gray cable(CW-),Yellow cable( WW-) (12V:3*16AWG, 24V/48V:3*18AWG) |
Warm tips:
1. Any other requests for, we can customize.
2. Please ensure that the connection is correct.
Connecting Diagram
① For standard dimming system
② For 3-way dimming system
Note: Dimmer's panel is not replaceable.
Knob to adjust the voltage
MANUAL VOLTAGE TUNING
(+/-2V) FOR OUTPUT OPTIMIZATION
12V output volt.: 12-13.5V
24V output volt.: 24-26V
48V output volt.: 48-50V
Instructions
1. This driver+dimmer 2 in 1 should be installed by qualified and professional person.
2. Please make sure the driver+dimmer 2 in 1 is installed with adequate ventilation around it to allow for heat dissipation.
3. Ensure that connection is correct to avoid LED light or driver+dimmer 2 in 1 be damaged.
4. If the driver+dimmer 2 in 1 cannot work normally, don’t maintain privately.
