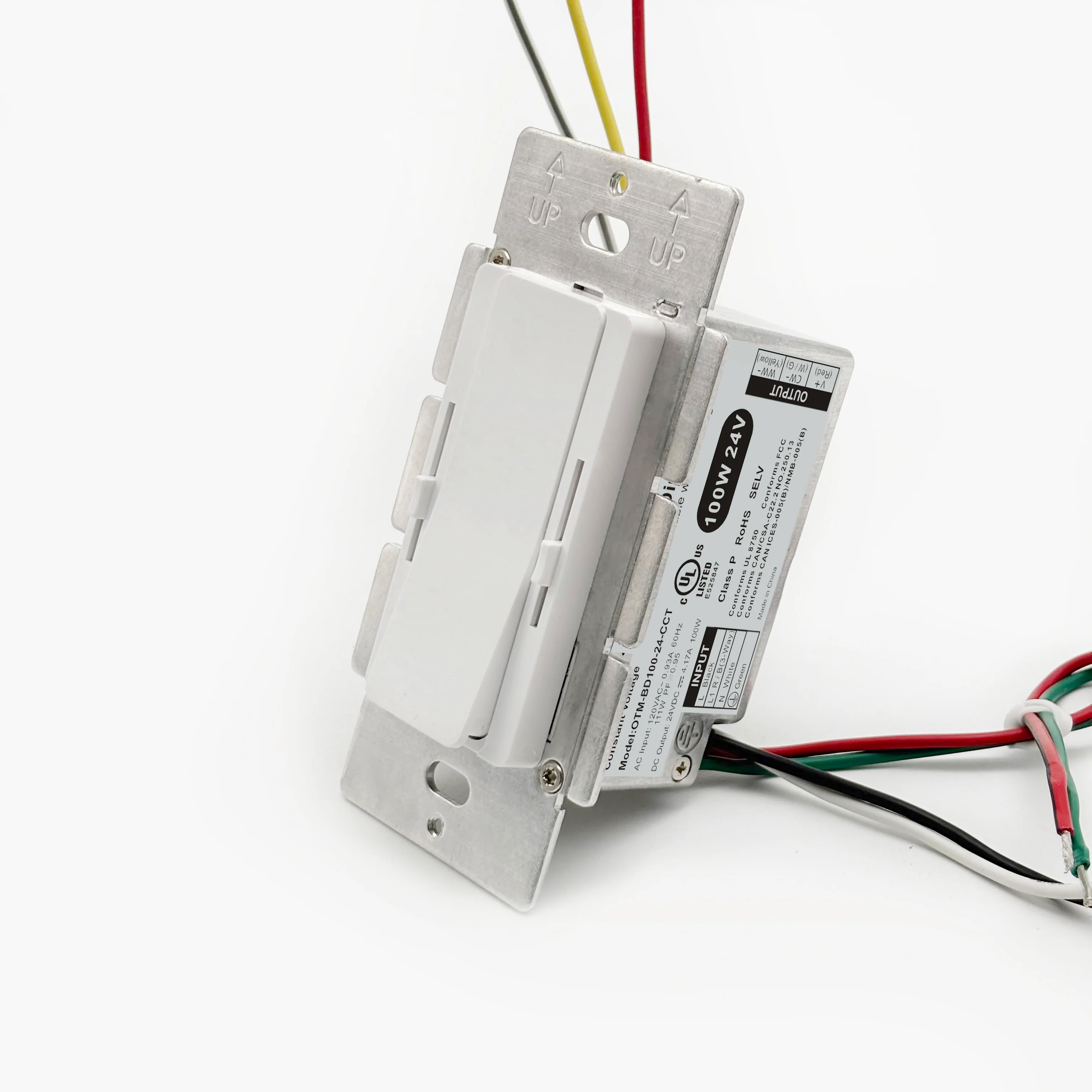

The 100W CCT dimmable LED driver and dimming switch two-in-one unit is designed to provide superior control and simplified installation experience for your LED lighting project. It cleverly integrates a high-efficiency constant voltage LED driver and a convenient dimming function, effectively solving the compatibility problem between the driver and the switch, and greatly saving wiring and space.
Spec Sheet Download

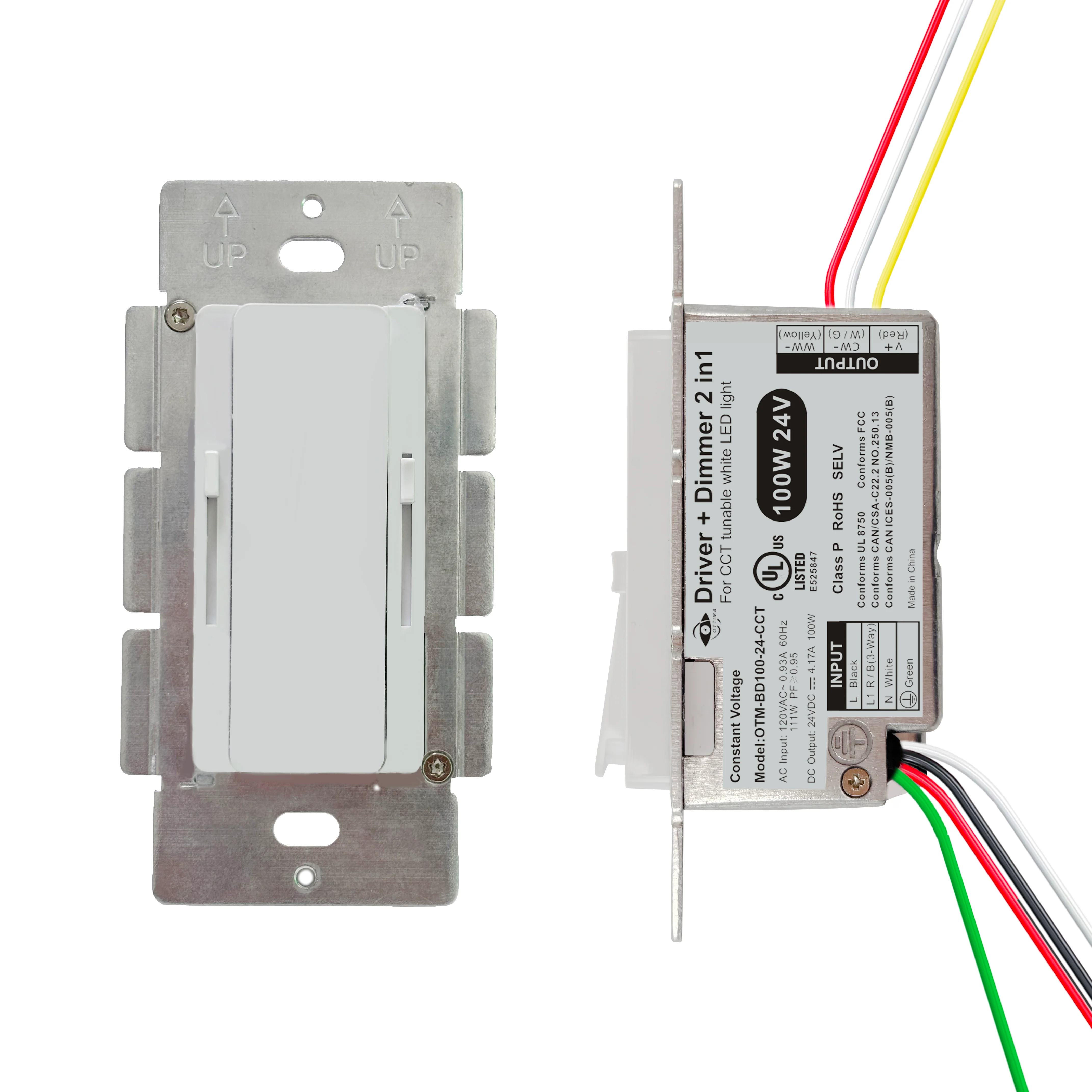

100W LED Driver + Dimmer Switch 2 in 1
100W CCT dimmable LED driver and dimmer switch two-in-one unit is an innovative product designed for modern LED lighting systems. It perfectly integrates the core functions of LED driver with user-friendly dimmer switch, completely eliminating the compatibility problems between driver and dimmer switch, bringing you unprecedented installation convenience and smooth operation.
As an efficient constant voltage LED power supply, this unit provides a powerful 100W rated power output and supports 24V or 48V DC voltage selection (the output voltage can be fine-tuned via the knob). This means that it is widely compatible with most constant voltage LED lamps on the market, such as LED light strips, modules, under-cabinet lights, etc., ensuring that your lighting system has a stable and continuous power supply. Its input voltage range is 120VAC, frequency 60Hz, and active PFC function is built in, with a power factor of up to 0.99 at full load, achieving excellent energy efficiency.
The core advantage of this 2-in-1 unit is its excellent CCT (color temperature) dimming capability. Not only can you achieve ultra-wide flicker-free dimming from 0.3% to 100% through the built-in dimmer, but you can also precisely adjust the color temperature of the LED light according to your needs, from comfortable warm white to bright cool white (usually covering the range of 2700K to 6500K), easily creating a variety of lighting atmospheres from warm to refreshing. In addition, it supports 3-Way switch function, providing more flexible wiring and multi-point control options.
Safety is the top priority in the design of this product. It has obtained comprehensive UL/cUL/FCC/Class P/SELV/RoHS/Reach and other authoritative certifications to ensure compliance with the highest electrical safety standards. The product has a complete protection mechanism, including short-circuit protection (automatic recovery after fault elimination), overload protection (automatic recovery in constant current mode) and over-temperature protection (automatic shutdown and recovery when the shell surface temperature reaches 100℃±10℃). All these protection functions are designed to ensure the safe and stable operation of your LED lamps and the entire lighting system.
Derating Curve (Output power VS Ambient TEMP)
Derating Curve (Output power VS Ambient TEMP)
1.To extend their life, please refer to the Derating Curve and derate according to the temperature.
2.The output current of the LED driver should be selected according to the rated current of the lamp and the ambient temperature.
Normally, we recommend the power supply to reserve a certain amount of load to extend LED driver's life.
Mechanical Specification
American Wire Gauge | |

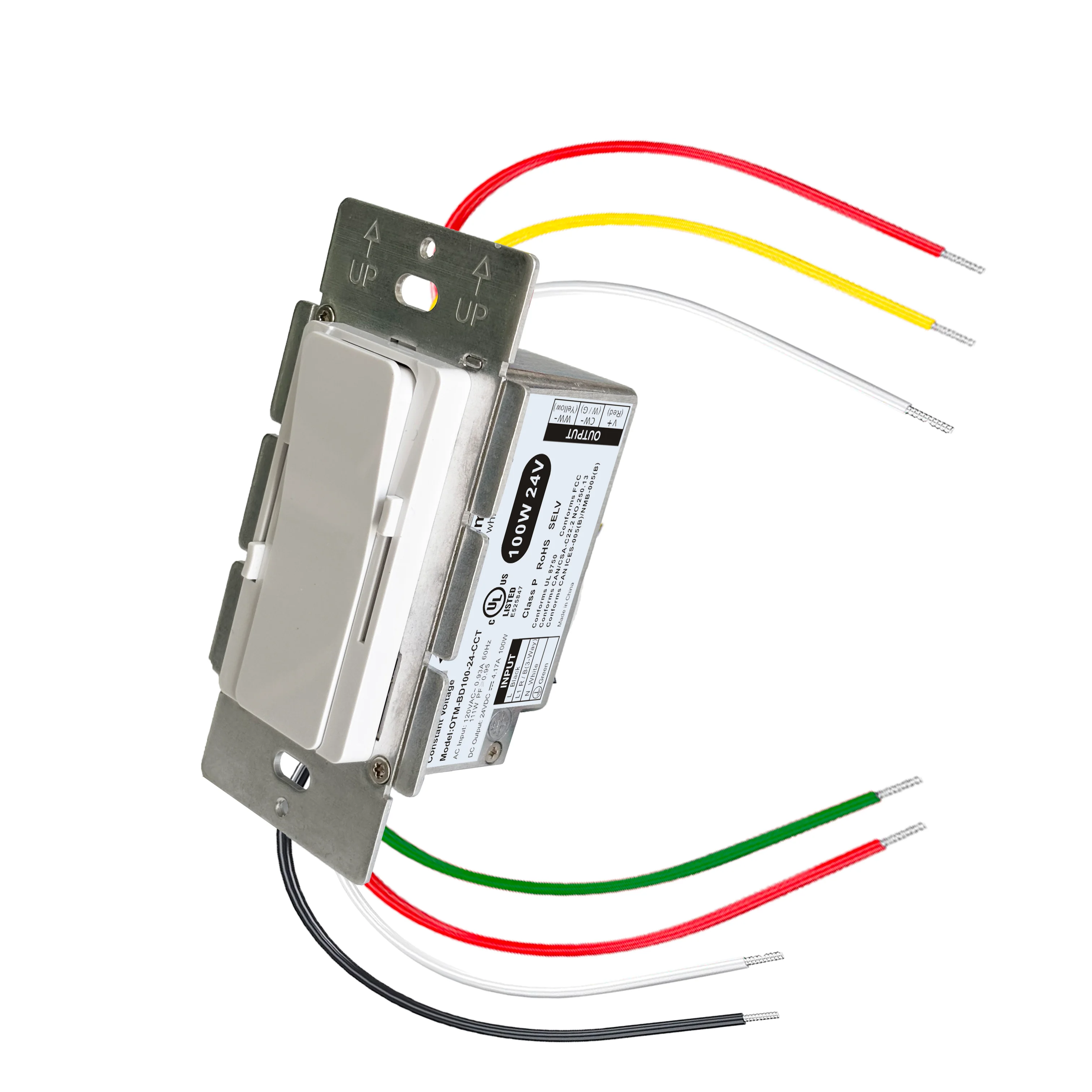

Input wires | Black cable (L), Red black cable (L1) , White cable (N) and Green cable (FG) (4*18AWG) |
Output wires | Red cable (V+) ,White gray cable(CW-),Yellow cable( WW-) (12V:3*16AWG, 24V/48V:3*18AWG) |
Warm tips:
1. Any other requests for, we can customize.
2. Please ensure that the connection is correct.
Connecting Diagram
① For standard dimming system
② For 3-way dimming system
Note: Dimmer's panel is not replaceable.
Knob to adjust the voltage
MANUAL VOLTAGE TUNING
(+/-2V) FOR OUTPUT OPTIMIZATION
12V output volt.: 12-13.5V
24V output volt.: 24-26V
48V output volt.: 48-50V
Instructions
1. This driver+dimmer 2 in 1 should be installed by qualified and professional person.
2. Please make sure the driver+dimmer 2 in 1 is installed with adequate ventilation around it to allow for heat dissipation.
3. Ensure that connection is correct to avoid LED light or driver+dimmer 2 in 1 be damaged.
4. If the driver+dimmer 2 in 1 cannot work normally, don’t maintain privately.
