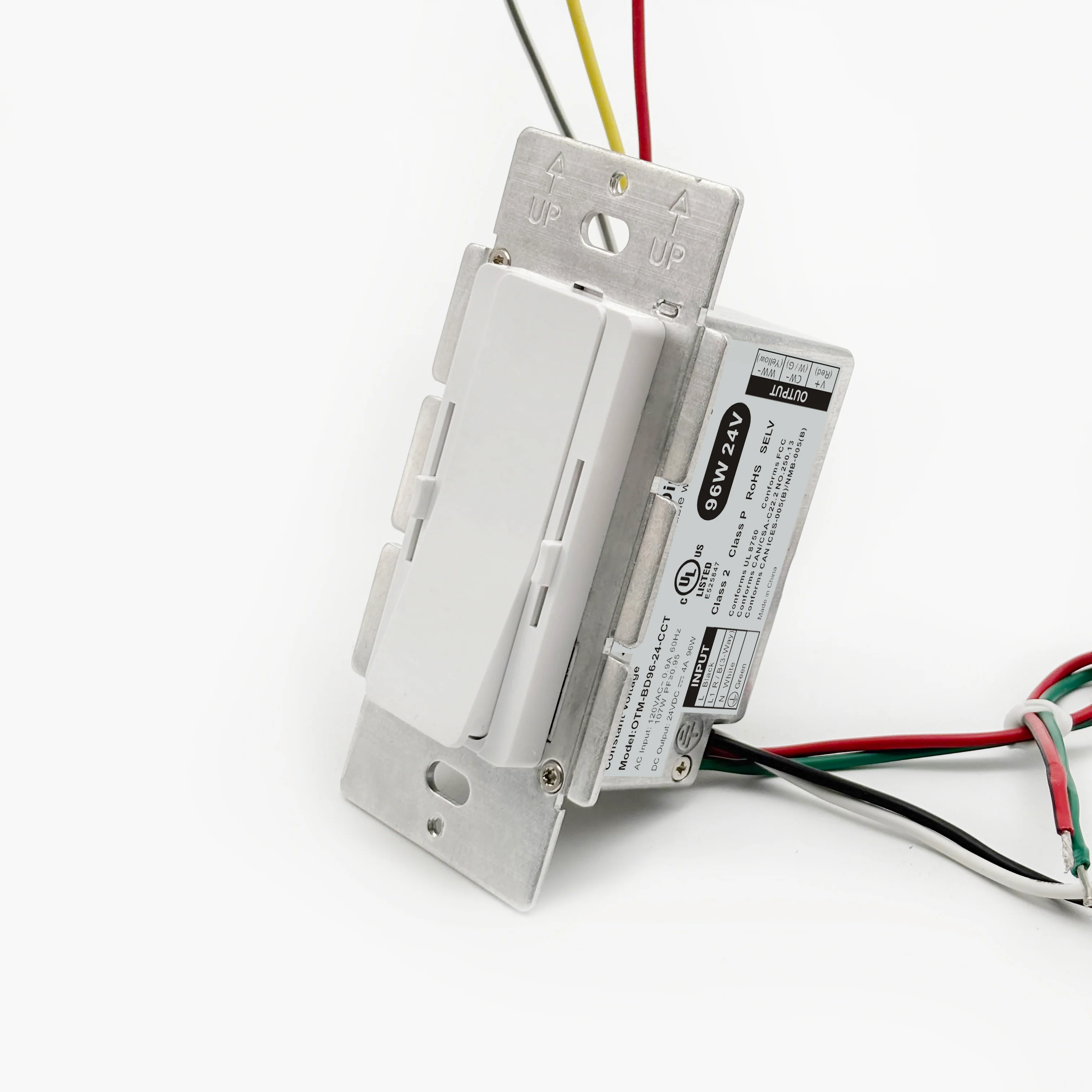

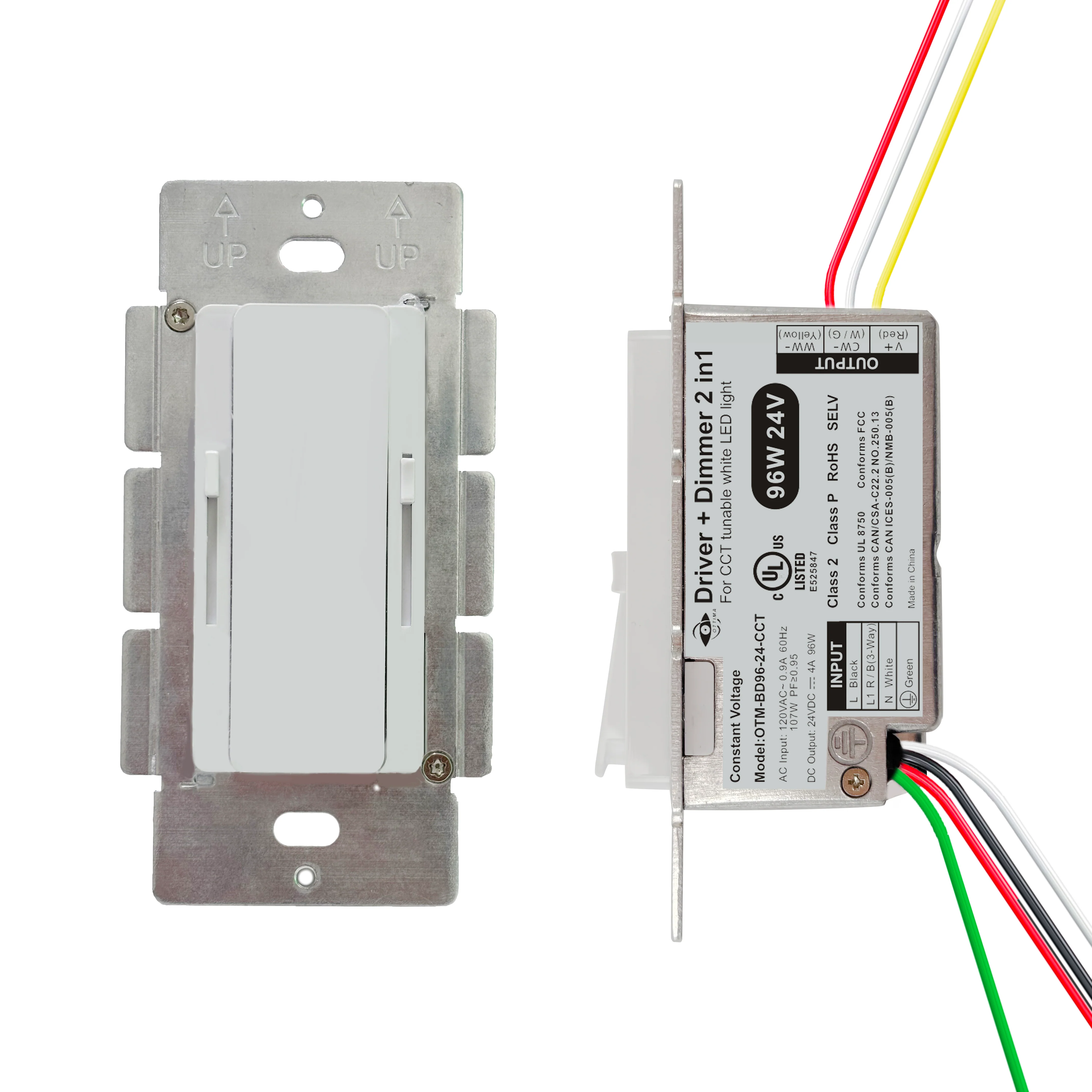

OTM-BD96-24-CCT / OTM-BD-9648-CCT
As a high-performance LED power solution, the driver dimmer unit provides 96W of stable output power, ensuring that your LED lamps (such as LED strips, panel lights, etc.) get sufficient and continuous power supply. Its core highlight is the CCT (Correlated Color Temperature) dimmable capability, which means that you can not only adjust the brightness of the light (dimming), but also accurately change the color temperature of the light, from warm yellow light (such as 2700K) to refreshing cool white light (such as 6500K), easily creating a variety of atmospheres to meet the needs of different scenes.
This LED driver strictly follows the highest safety standards in the industry and has been UL Listed to ensure product safety and reliability. Its Class 2 low-voltage output features make installation and use safer, especially suitable for various low-voltage LED lighting projects in residential and commercial environments. Whether it is a living room, bedroom, kitchen, or a store display cabinet or office area, this two-in-one unit can provide a stable, safe and highly customizable lighting solution.
Model | OTM-BD96-24-CCT | OTM-BD96-48-CCT |
Certificate | UL / cUL / FCC / Class P / SELV / RoHS / Reach |
Output | DC Rate Voltage | 24V (24V-26V adjust by knob) | 48V (48V-50V adjust by knob) |
Voltage Tolerance | ±0.5V |
Load Regulation | ≤1% | ≤1% |
Line Regulation | ≤0.5% |
Rated current | 4A | 2A |
Rated power | 96W | 96W |
Input | Voltage Range | 120VAC |
Frequency Range | 60Hz |
Power Factor @ full load | ≥0.99 |
THD(Typ.) @ full load | ≤10% |
Efficiency @ full load | 91.0% | 92.0% |
AC Current (Max.) | 0.9A | 0.9A |
Inrush Current (Typ.) | 50A, 150us@50% Ipeak |
Leakage current | <0.5mA |
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
Over Load | ≥110% Constant current mode, recovers automatically after fault condition is removed |
Over temperature | Shell surface temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling |
Environment | Working TEMP. | -40~+60℃ (see below derating curve) |
Working Humidity | 20 - 95%RH non-condensing |
Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing |
TEMP.coefficient | ±0.03%/℃(0 - 50℃) |
Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72 min. each along X,Y,Z axes |
Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 (US) |
Withstand voltage | I/P-O/P:1.8KVAC I/P-F/G:1.8KVAC O/P-F/G:0.5KVAC (US) |
Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH |
EMC Immunity | FCC/ICES do not request this test (US) |
EMC Emission | FCC Part15 Subpart B ANSI C63.4:2014 (US) |
Others | Net Weight | 0.25KG |
Dimension | 105*54*51mm / 4.134"x2.126"x1.996" (Inch) |
Packing |
|
Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance and load regulation . |
Derating Curve (Output power VS Ambient TEMP)
Derating Curve (Output power VS Ambient TEMP)
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. The output current of the LED driver should be selected according to the rated current of the lamp and the ambient temperature.
Normally, we recommend the power supply to reserve a certain amount of load to extend LED driver's life.
Mechanical Specification
American Wire Gauge |

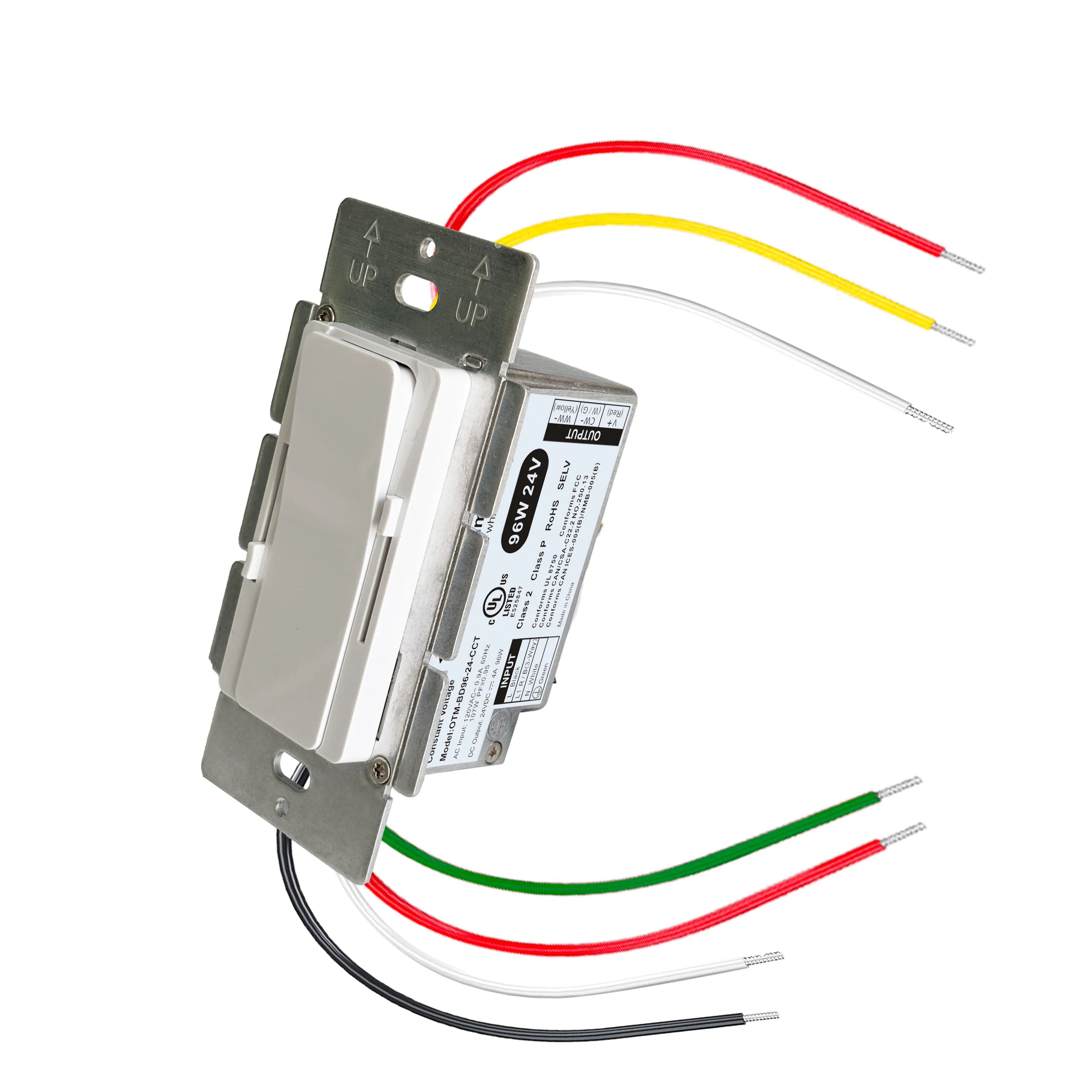

Input wires | Black cable (L), Red black cable (L1) , White cable (N) and Green cable (FG) (4*18AWG) |
Output wires | Red cable (V+) ,White gray cable(CW-),Yellow cable( WW-) (12V:3*16AWG, 24V/48V:3*18AWG) |
Warm tips:
1.Any other requests for, we can customize.
2.Please ensure that the connection is correct.
Connecting Diagram
① For standard dimming system
② For 3-way dimming system
Note: Dimmer's panel is not replaceable.
Knob to adjust the voltage
MANUAL VOLTAGE TUNING
(+/-2V) FOR OUTPUT OPTIMIZATION
12V output volt.: 12-13.5V
24V output volt.: 24-26V
48V output volt.: 48-50V
Instructions
1. This driver+dimmer 2 in 1 should be installed by qualified and professional person.
2. Please make sure the driver+dimmer 2 in 1 is installed with adequate ventilation around it to allow for heat dissipation.
3. Ensure that connection is correct to avoid LED light or driver+dimmer 2 in 1 be damaged.
4. If the driver+dimmer 2 in 1 cannot work normally, don’t maintain privately.
