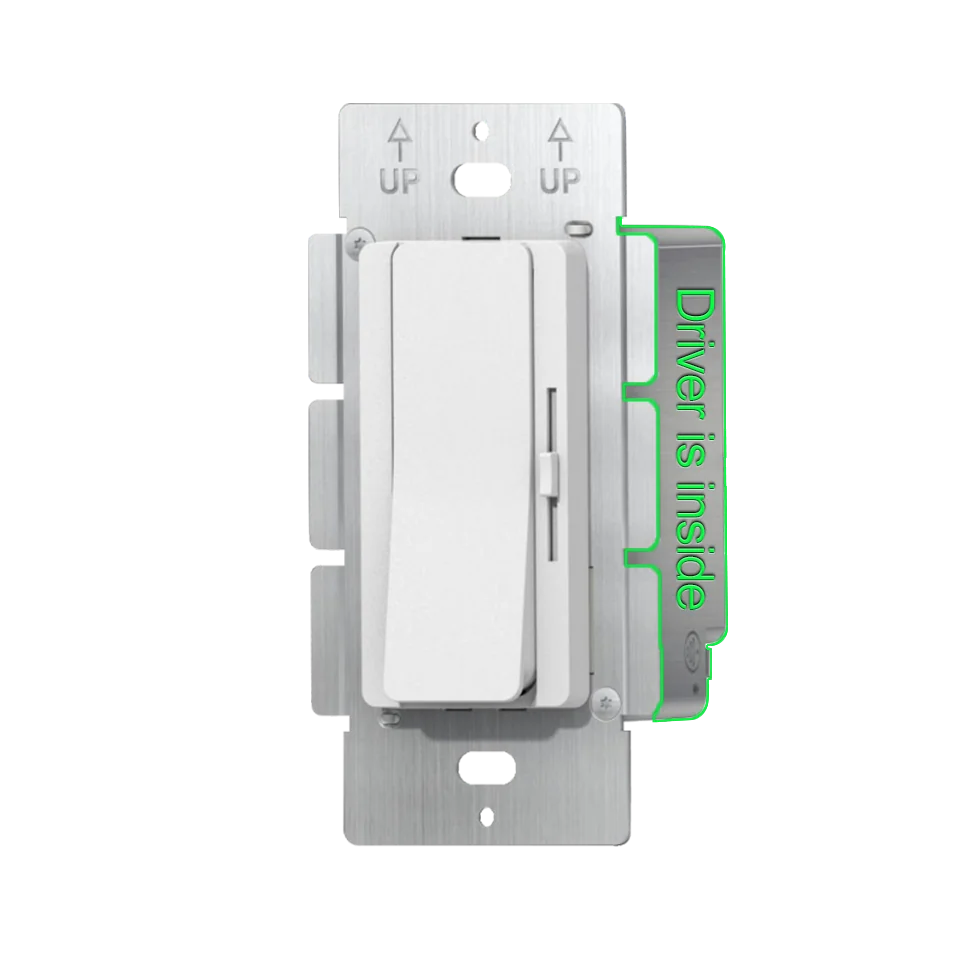

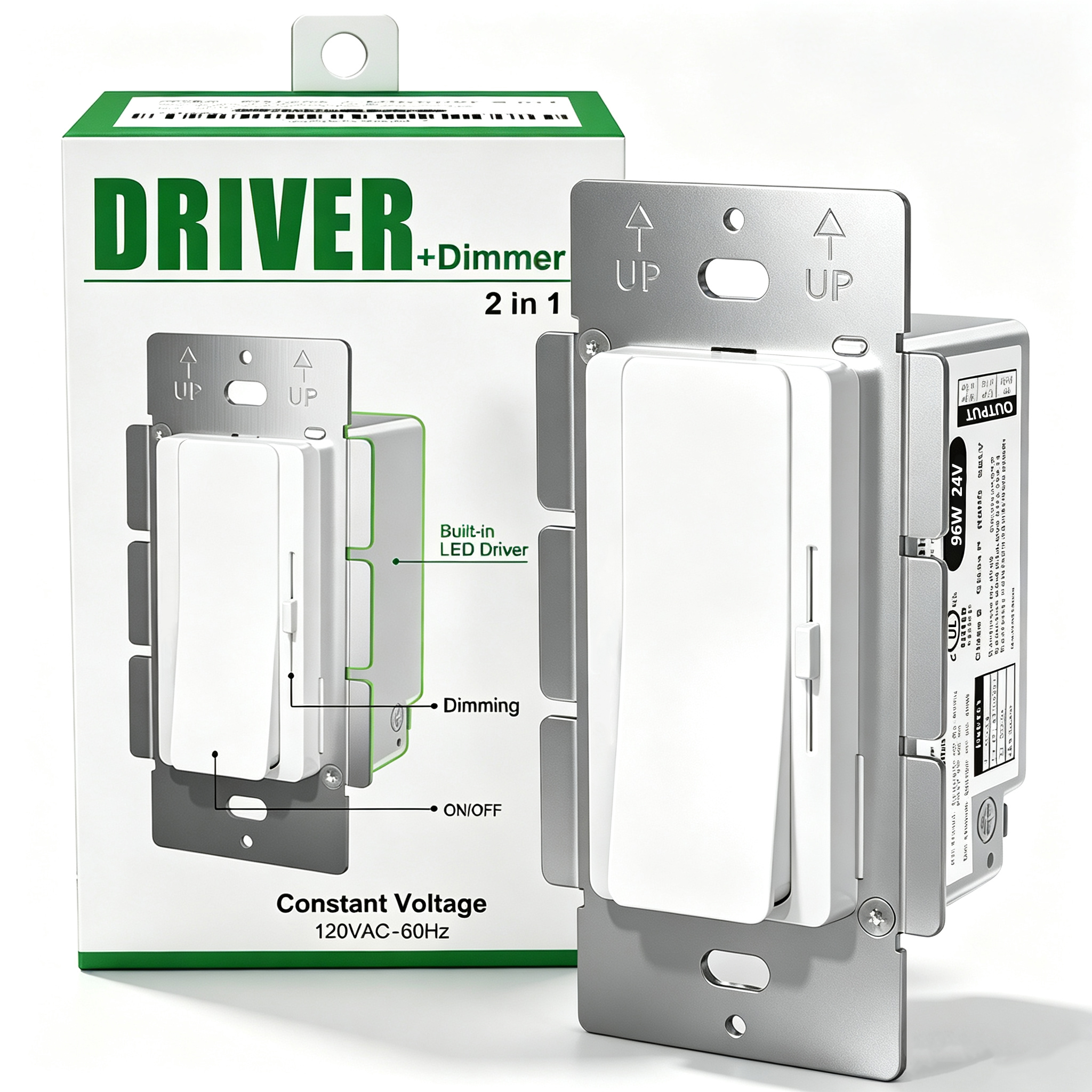

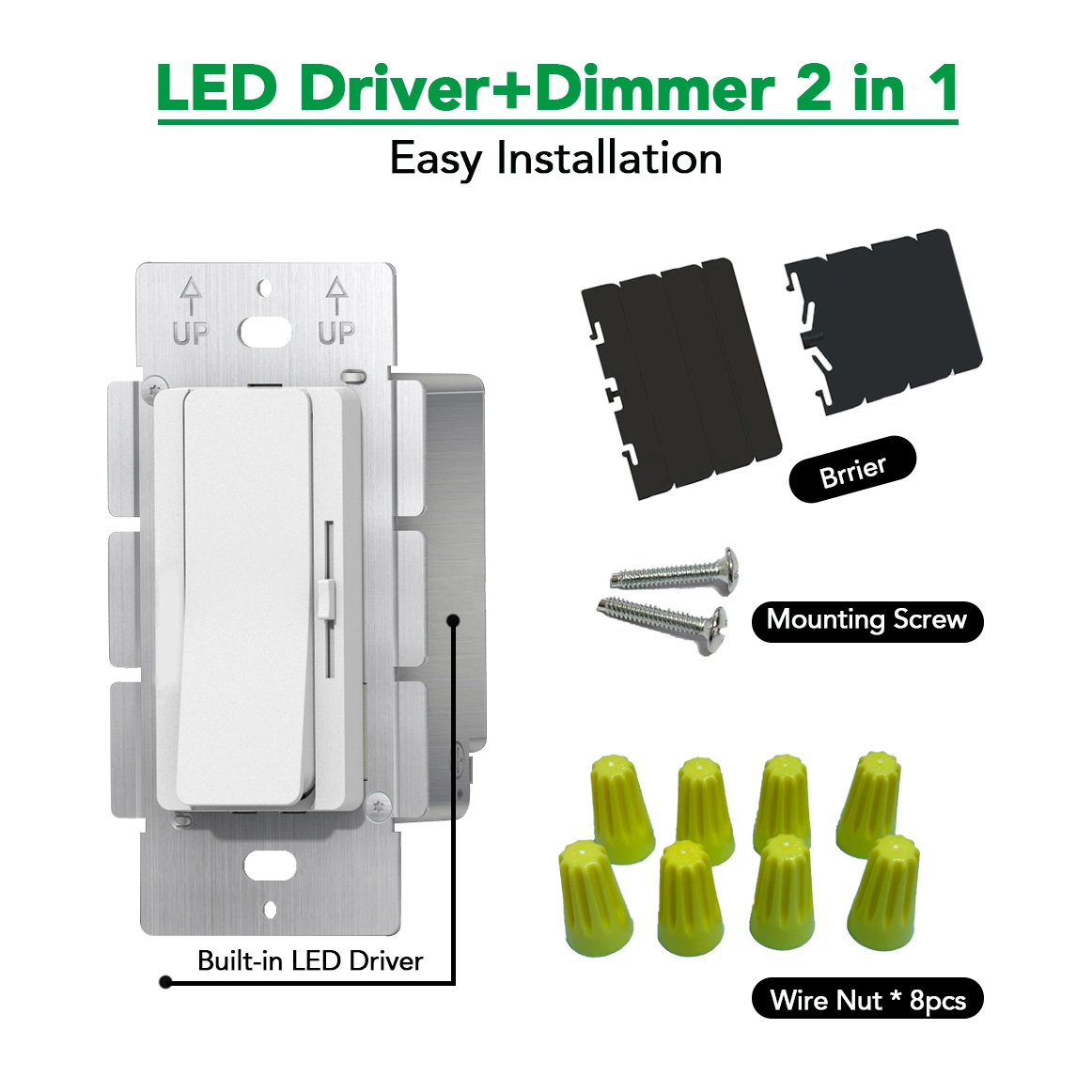

96W Dimmable LED Driver + Dimmer Switch 2 in 1

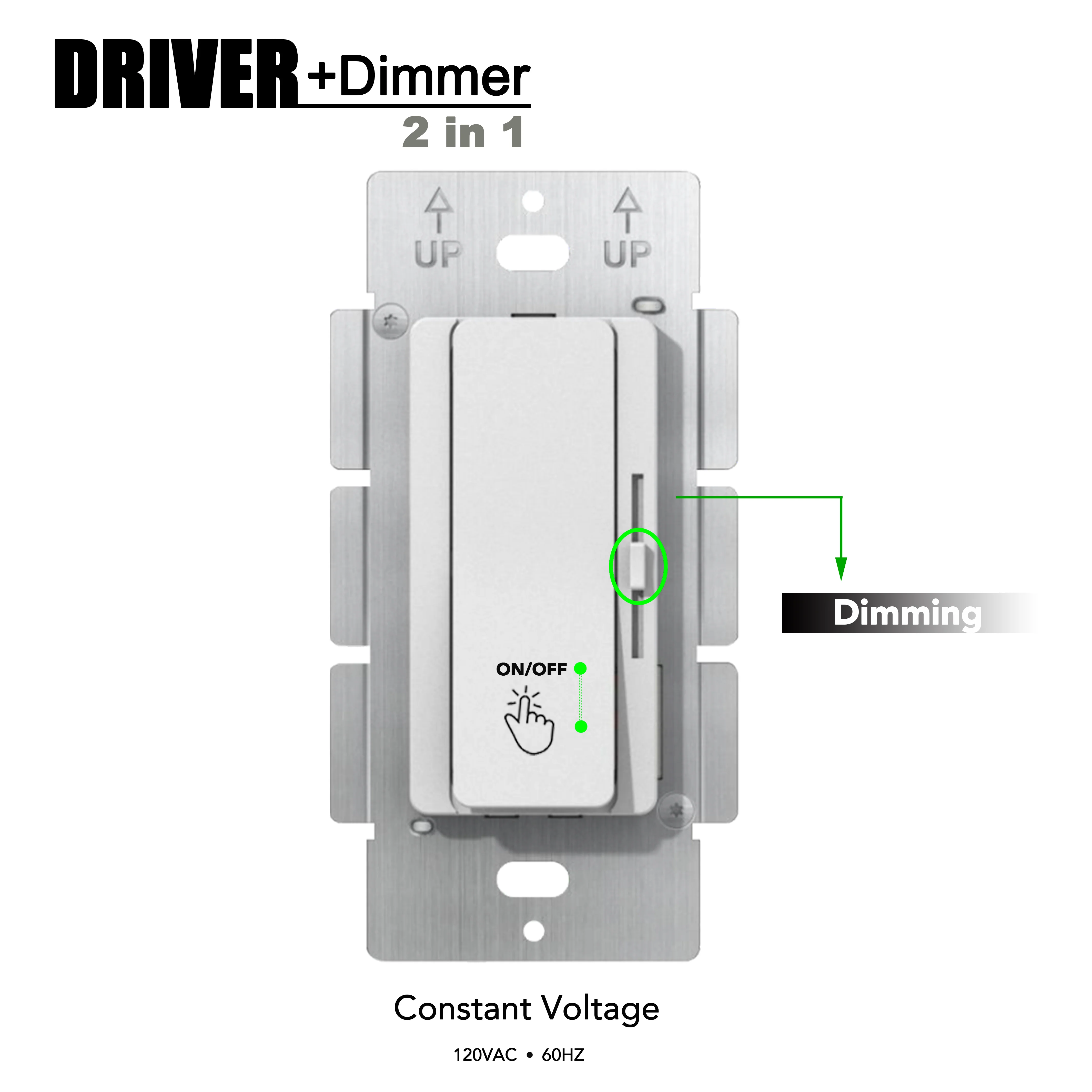

Elevate your LED lighting projects with the high-performance 96W Dimmable LED Driver + Dimmer 2-in-1 Unit. This innovative, constant voltage power supply delivers a stable 96W output , available in both 24V and 48V DC options, with the flexibility to fine-tune the output voltage via a knob. Experience smooth, flicker-free dimming from 0.3% to 100% , thanks to its 16KHZ PWM output and gamma 2.2 dimming curve.
Designed to eliminate compatibility issues between LED drivers and switches, this unit simplifies your setup. It boasts comprehensive UL/cUL/FCC certifications , guaranteeing compliance with stringent safety standards for dry and damp locations. Featuring a built-in active PFC function and multiple protections (short circuit, overload, over-temperature), it ensures reliable operation. With its compact dimensions (105x54x51mm) and a 5-year warranty, this 96W integrated LED driver and dimmer is an ideal, versatile solution for residential and commercial LED lighting applications.
Model | OTM-BD96-24-D | OTM-BD96-48-D |
Certificate | UL / cUL / FCC / Class P / SELV / RoHS / Reach |
Output | DC Rate Voltage | 24V (24V-26V adjust by knob) | 48V (48V-50V adjust by knob) |
| Voltage Tolerance | ±0.5V |
| Load Regulation | ≤1% | ≤1% |
| Line Regulation | ≤0.5% |
| Rated current | 4A | 2A |
| Rated power | 96W | 96W |
Input | Voltage Range | 120VAC |
| Frequency Range | 60Hz |
| Power Factor @ full load | ≥0.99 |
| THD(Typ.) @ full load | ≤10% |
| Efficiency @ full load | 91.0% | 92.0% |
| AC Current (Max.) | 0.9A | 0.9A |
| Inrush Current (Typ.) | 50A, 150us@50%Ipeak |
| Leakage current | <0.5mA |
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over Load | ≥110% Constant current mode, recovers automatically after fault condition is removed |
| Over temperature | Shell surface temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling |
Environment | Working TEMP. | -40~+60℃ (see below derating curve) |
| Working Humidity | 20 - 95%RH non-condensing |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) |
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72 min. each along X,Y,Z axes |
Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 (US) |
| Withstand voltage | I/P-O/P:1.8KVAC I/P-F/G:1.8KVAC O/P-F/G:0.5KVAC (US) |
| Isolation resistance | I/P-O/P:100M Ω / 500VDC / 25℃ / 70% RH |
| EMC Immunity | FCC/ICES do not request this test (US) |
| EMC Emission | FCC Part15 Subpart B ANSI C63.4:2014 (US) |
Others | Net Weight | 0.25KG |
| Dimension | 105*54*51mm / 4.134"x2.126"x1.996" (Inch) |
| Packing |
|
Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance and load regulation. |
Derating Curve (Output power VS Ambient TEMP)
Derating Curve (Output power VS Ambient TEMP)
1.To extend their life, please refer to the Derating Curve and derate according to the temperature.
2.The output current of the LED driver should be selected according to the rated current of the lamp and the ambient temperature.
Normally, we recommend the power supply to reserve a certain amount of load to extend LED driver's life.

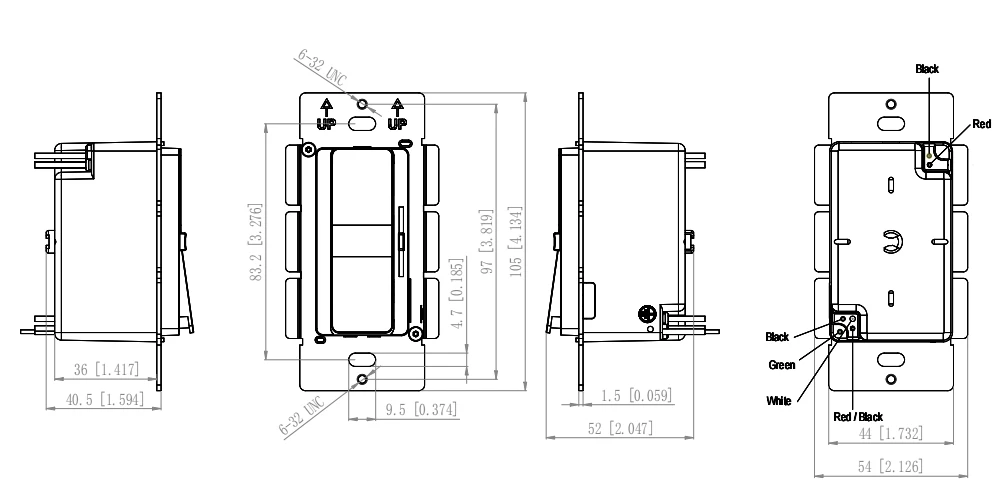

Mechanical Specification
American Wire Gauge |

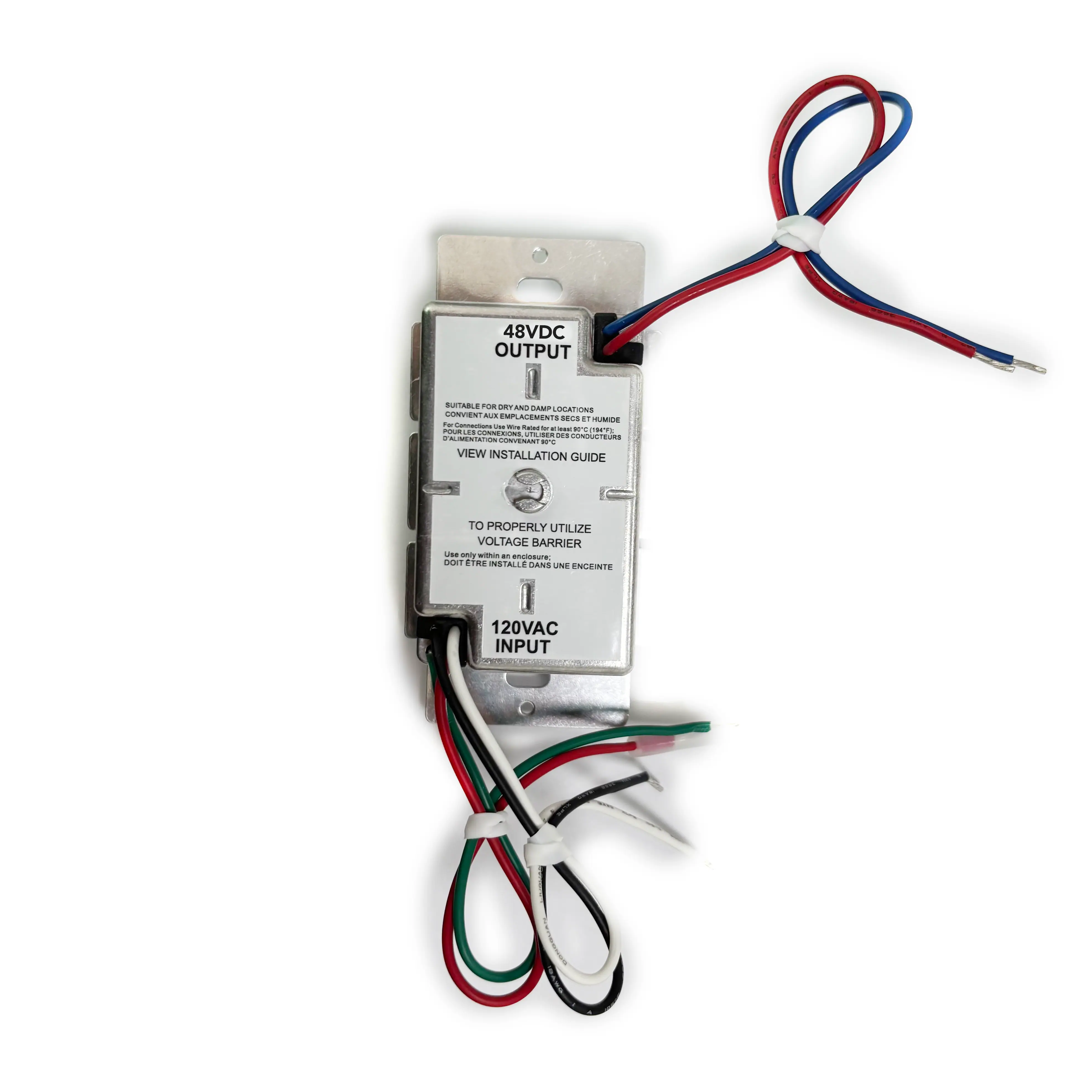

Input wires | Black cable (L), Red black cable (L1) , White cable (N) and Green cable (FG) (4*18AWG) |
Output wires | Red cable (V+), Blue cable (V-) (2*18AWG) |
Warm tips:
1. Any other requests, we can customize.
2. Please ensure that the connection is correct.
Connecting Diagram

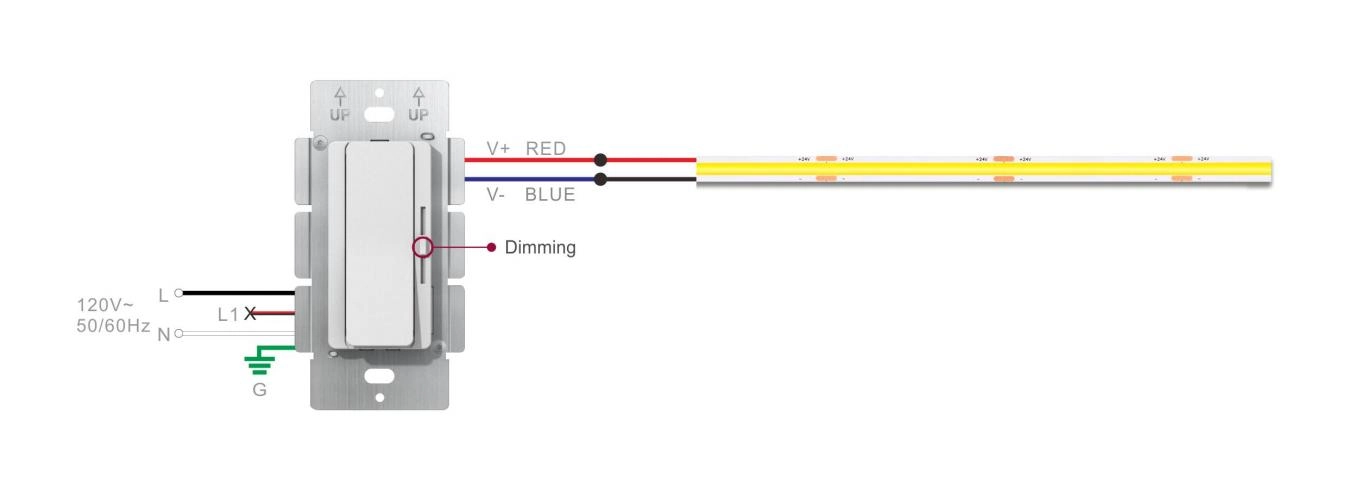

① For standard dimming system

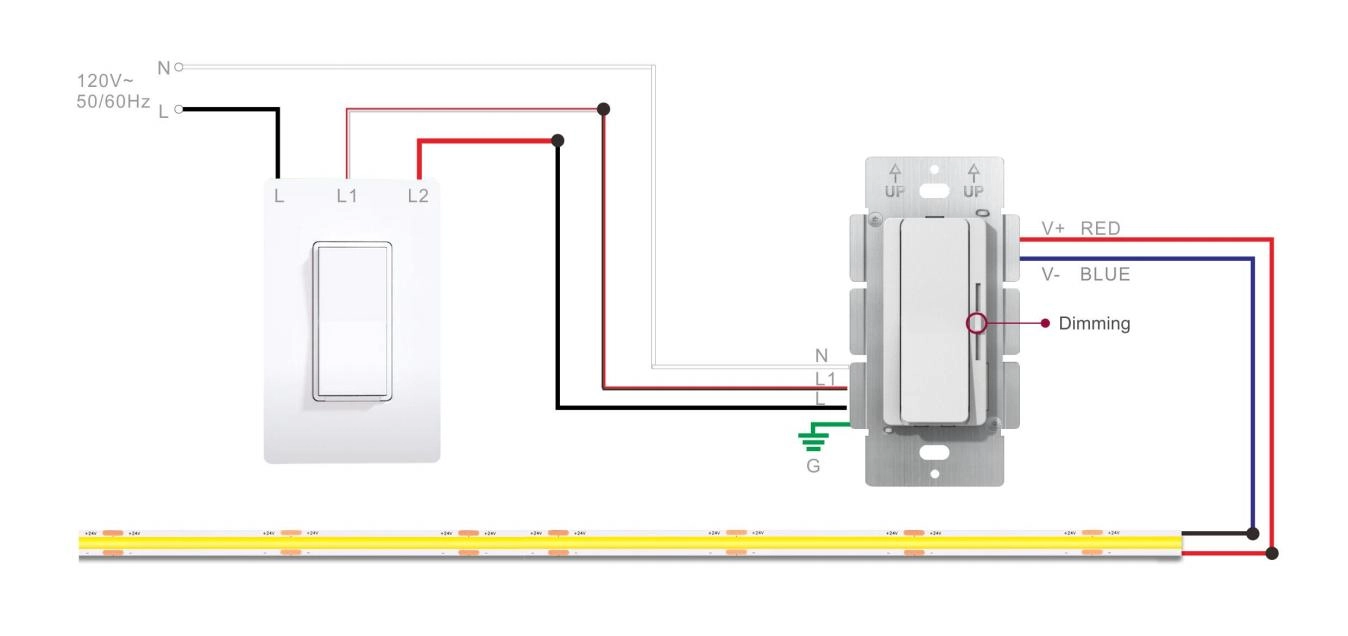

② For 3-way dimming system
Note: Dimmer's panel is not replaceable.
Knob to adjust the voltage
MANUAL VOLTAGE TUNING
(+/-2V) FOR OUTPUT OPTIMIZATION
12V output volt.: 12-13.5V
24V output volt.: 24-26V
48V output volt.: 48-50V
Instructions
1. This driver+dimmer 2 in 1 should be installed by qualified and professional person.
2. Please make sure the driver+dimmer 2 in 1 is installed with adequate ventilation around it to allow for heat dissipation.
3. Ensure that connection is correct to avoid LED light or driver+dimmer 2 in 1 be damaged.
4. If the driver+dimmer 2 in 1 cannot work normally, don’t maintain privately.
