Elevate your lighting with our 60W Triac/ELV/MLV Dimmable LED Transformer, a compact and powerful solution for flawless dimming. This UL-listed, Class 2 constant voltage driver ensures smooth 0-100% dimming compatible with popular dimmer types.
Spec Sheet Download

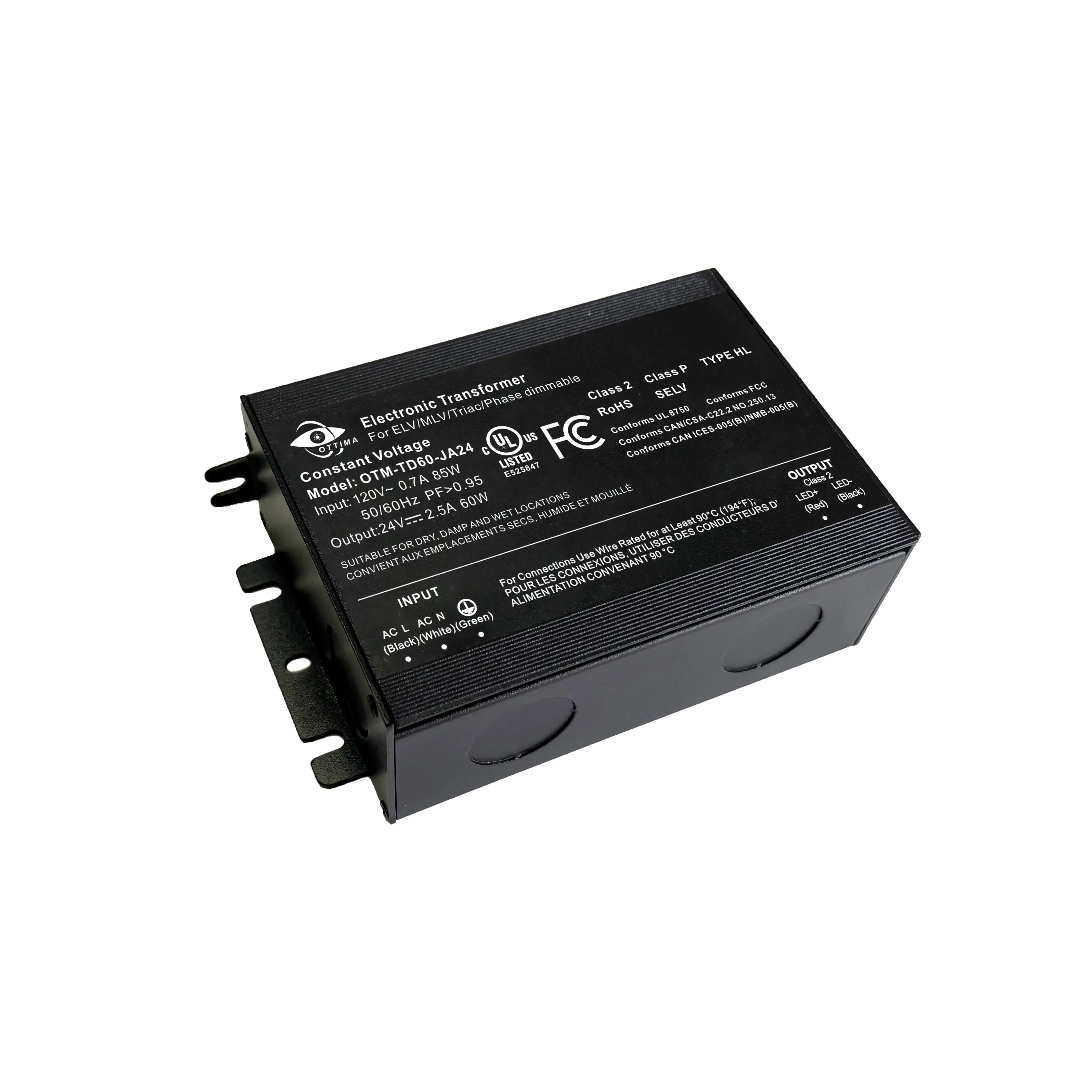

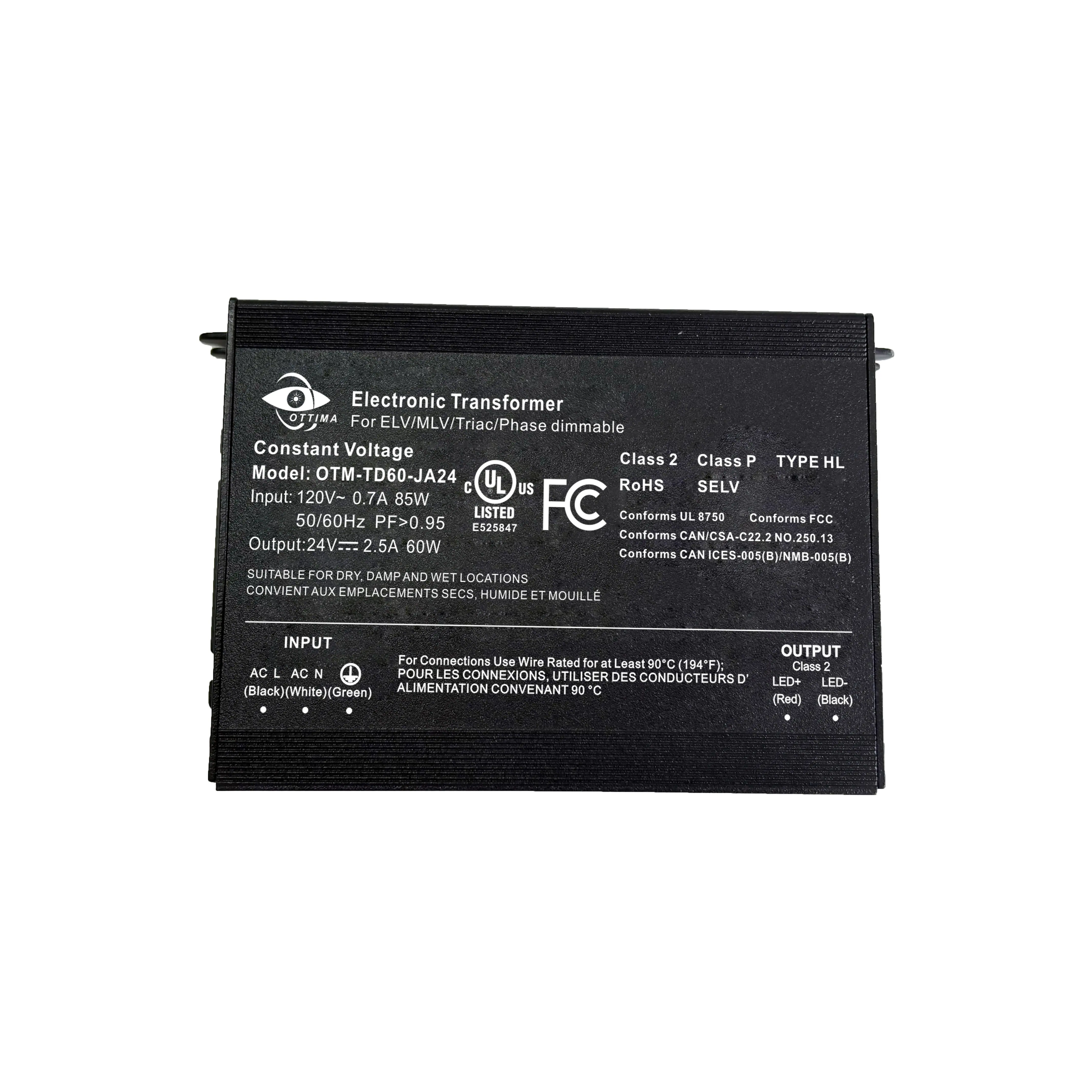

60W 12V/24V Triac/ ELV/MLV Dimming Electronic Transformer
Unleash the full potential of your LED lighting with our cutting-edge OTM-TD60-JA series 60W Dimmable LED Transformer. This versatile constant voltage power supply is specifically engineered for seamless integration with Triac, Electronic Low Voltage (ELV), and Magnetic Low Voltage (MLV) dimming systems, offering a wide 0-100% dimming range. Say goodbye to compatibility headaches; it works flawlessly with popular dimmers like Lutron-CL and Diva series.
Proudly UL Listed, Class 2, Class P, and Type HL certified, this LED transformer guarantees safety and reliability for diverse installations. Its robust design allows for application in dry, damp, and even wet locations, making it perfect for LED strip/tape/module lighting in both residential and commercial projects. With a compact size of 126.4x80x40.4 mm, it fits discreetly into various setups. Enjoy a stable power factor of 0.94 and low total harmonic distortion (THD<20%@100% load), ensuring efficient and clean power delivery. Featuring super low loading requirements (optimal performance from 20-100% load) and built-in protections against short circuit and overload, this 60W dimmable LED driver offers exceptional performance and a reassuring 5-year warranty.
Specification
Model Number | OTM-TD60-JA12 | OTM-TD60-JA24 |
OUTPUT |
Rated Power | 60W | 60W |
Rated Voltage | 12V | 24V |
Rated Current | 5.0A | 2.5A |
Voltage Tolerance | ±1V | ±1.5V |
INPUT |
Voltage Range | 120V |
Frequency Range | 47-63Hz |
Power Factor(typ.) | 0.94@120VAC |
Total Harmonic Distortion | THD< 20%(@100% load) |
Efficiency（Typ.） | 88%@120VAC |
AC Current（Typ.） | 0.93A |
Leakage Current | <0.5mA/ 120VAC |
PROTECTION |
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
ENVIRONMENT |
Working Temp. | Tc =-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
Working humidity | 20 ~ 95% RH non-condensing |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
Temp .coefficient | ±0.03%/℃（0～50℃） |
Vibration | 10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
SAFETY & EMC |
Safety standards | UL8750, Class 2 |
Withstand voltage | I/P-O/P:1.88KVAC |
OTHERS |
Weight | 0.175/kg |
Dimension | See Mechanical Specification |
Packing | 36*24*19 cm (20PCS/CTN ) |
Mechanical Specification
Wiring Diagram
Load vs Ambient Temperature
Warm tips :
1. All Electronic Transformer meet the harmonic emissions requirements of ANSI C82.77-10.
