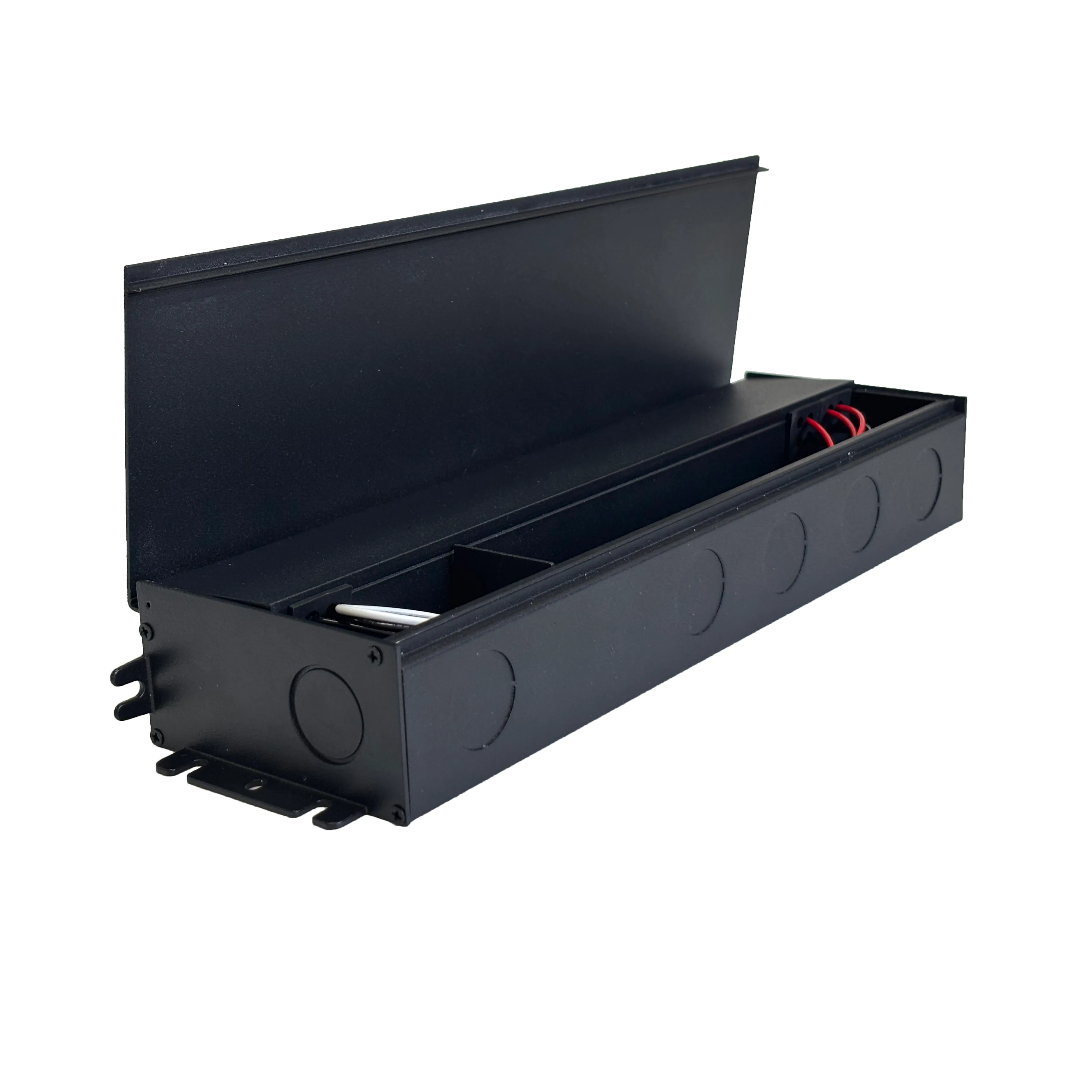

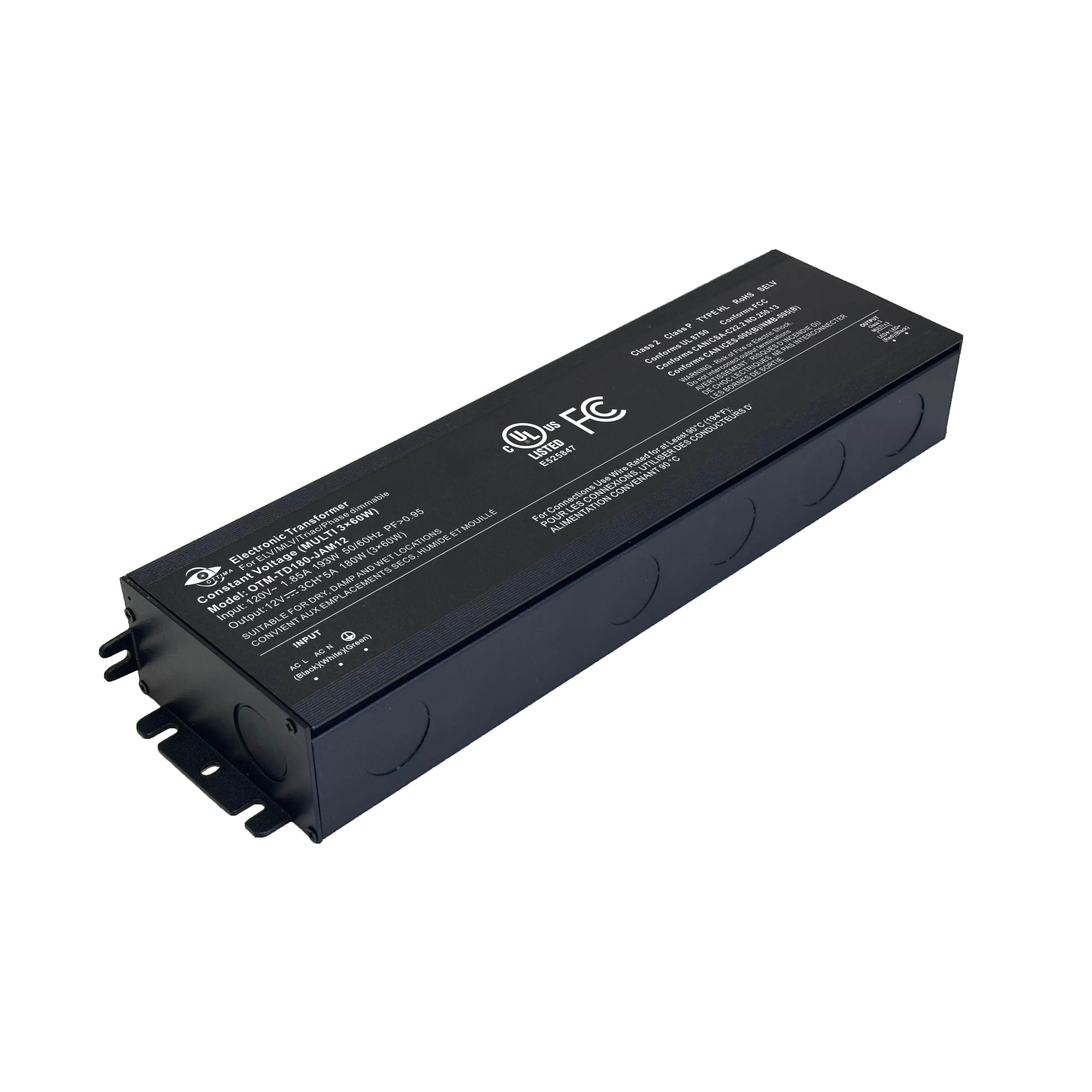

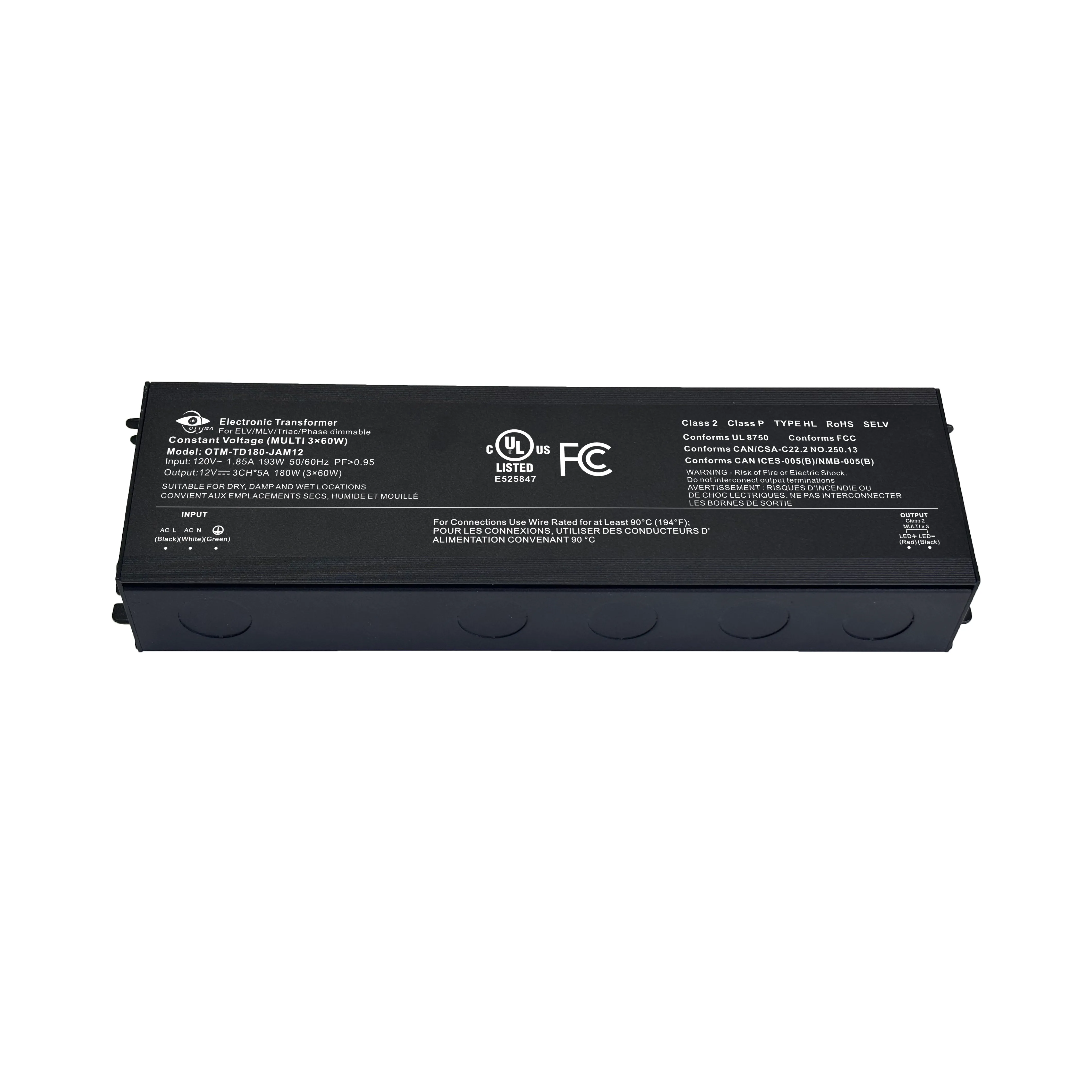

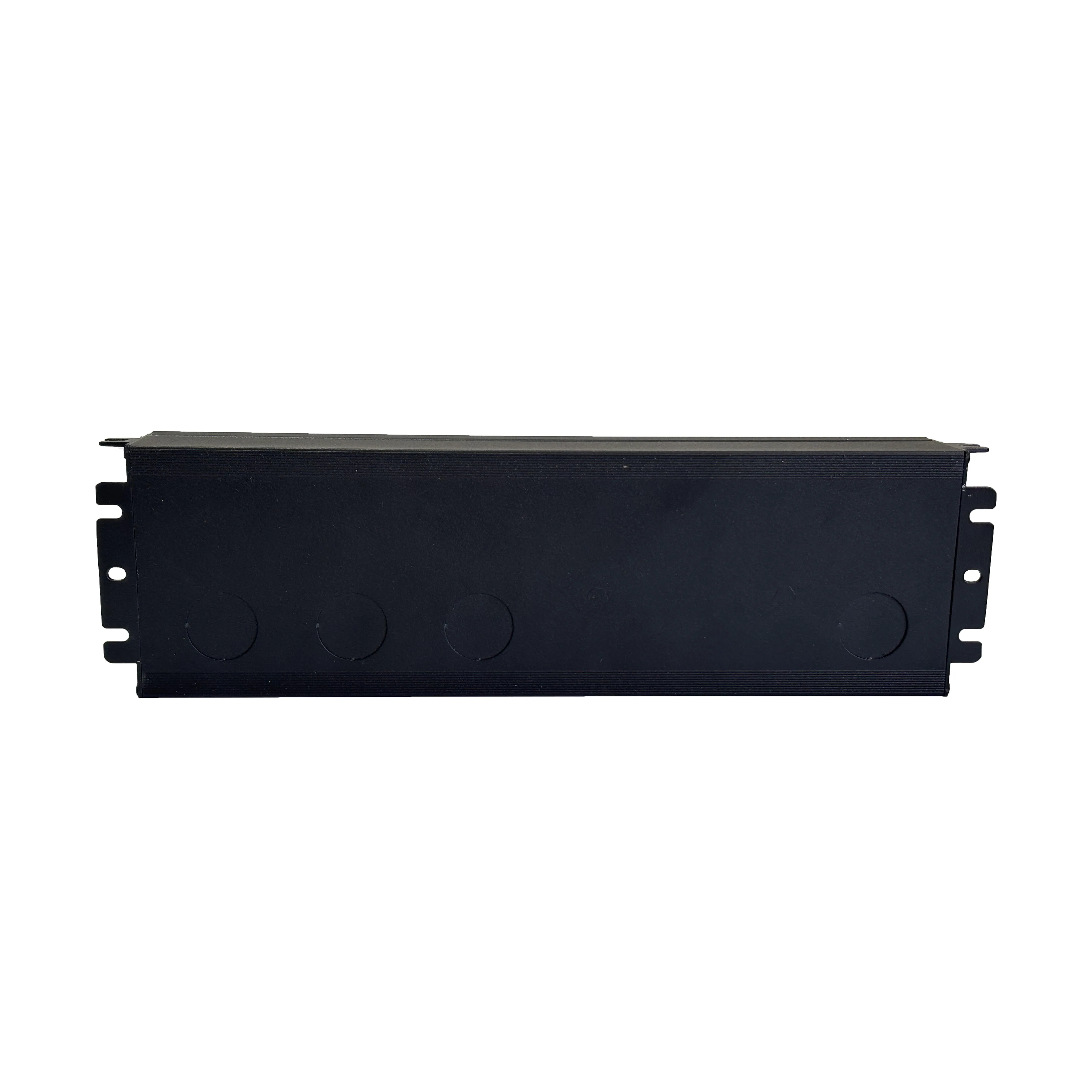

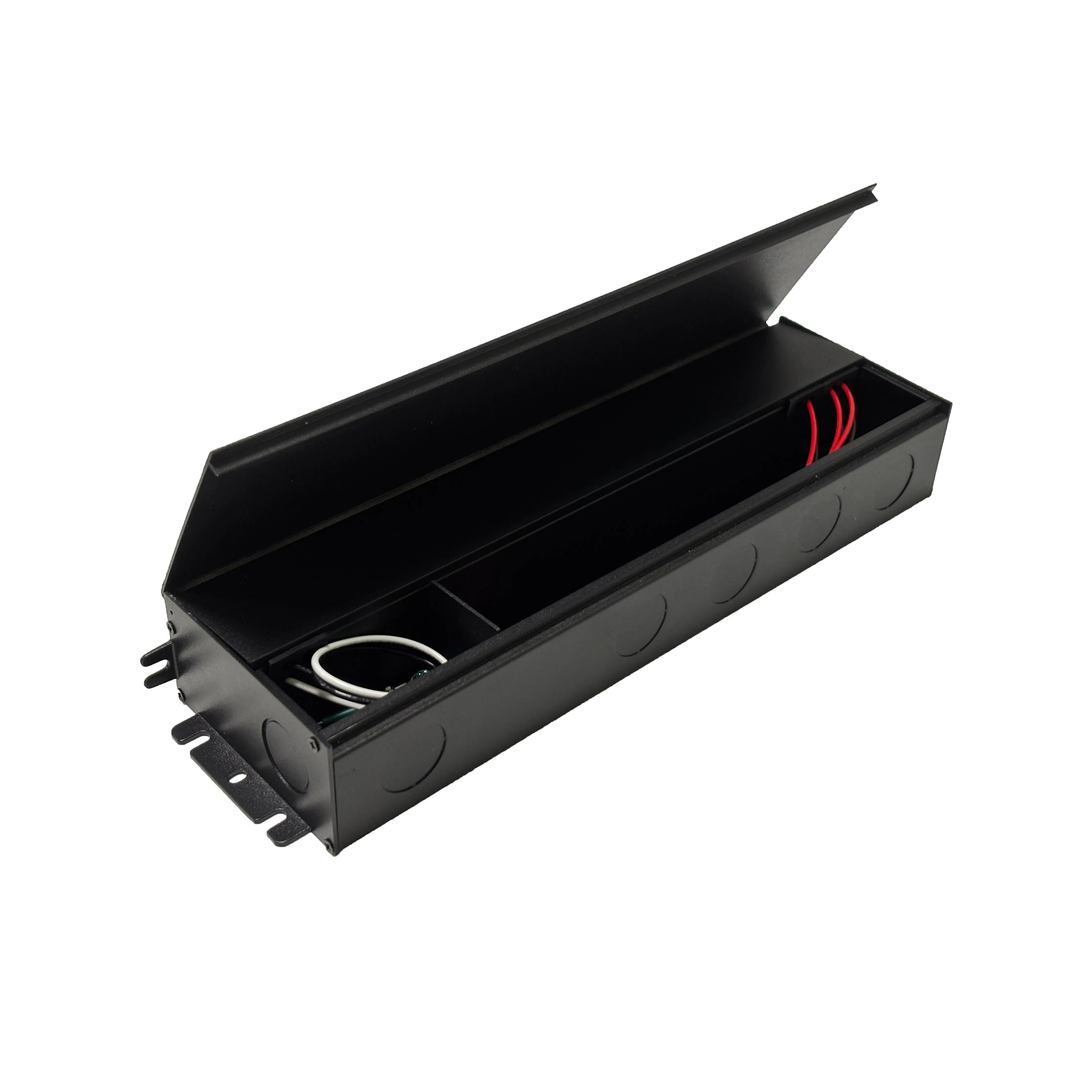

180W (60W x 3C) Triac/ELV/MLV Dimmable LED Transformer
Elevate your complex low-voltage LED lighting projects with the sophisticated OTM-TD180-JAM12 series 180W (60W x 3C) Dimmable LED Transformer. This high-capacity, multi-channel constant voltage power supply is expertly engineered to simultaneously control up to three independent 60W LED loads, providing exceptional flexibility for intricate lighting designs requiring a 12V output. It offers precise 0-100% flicker-free dimming , seamlessly integrating with Triac, Electronic Low Voltage (ELV), and Magnetic Low Voltage (MLV) dimmer systems. Compatibility with popular dimmers like Lutron-CL and Diva series ensures effortless control.
This 12V multi-output LED transformer proudly carries comprehensive certifications including UL Listed, Class 2, Class P, Type HL, and SELV, guaranteeing top-tier safety and reliability in the US market. Its robust design makes it ideal for use in dry, damp, and even wet locations , perfectly suited for extensive LED strip/tape/module installations in large residential, commercial, and hospitality settings. Featuring an efficient power factor of 0.94 and low total harmonic distortion (THD<20%@100% load), it ensures clean and stable power delivery. Equipped with comprehensive short circuit and overload protections , and backed by a substantial 5-year warranty, this 180W multi-channel LED driver promises enduring performance and peace of mind for your most demanding 12V lighting solutions. Its compact form factor (278.4x80x40.2 mm) allows for flexible integration.
Application:
LED strip/ LED tape/ LED module
Residential Lighting
Commercial Lighting
Specification
Model Number | OTM-TD180-JAM12 |
OUTPUT |
Rated Power | 180W（60W*3C） |
Rated Voltage | 12V |
Rated Current | 15A(5A*3C) |
Voltage Tolerance | ±1V |
INPUT |
Voltage Range | 120V |
Frequency Range | 47-63Hz |
Power Factor(typ.) | 0.94@120VAC |
Total Harmonic Distortion | THD< 20%(@100% load) |
Efficiency（Typ.） | 88%@120VAC |
AC Current（Typ.） | 1.85A |
Leakage Current | <0.5mA/ 120VAC |
PROTECTION |
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
ENVIRONMENT |
Working Temp. | Tc =-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
Working humidity | 20 ~ 95% RH non-condensing |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
Temp .coefficient | ±0.03%/℃（0～50℃） |
Vibration | 10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
SAFETY & EMC |
Safety standards | UL8750, Class 2 |
Withstand voltage | I/P-O/P:1.88KVAC |
OTHERS |
Weight | 0.93/kg |
Dimension | See Mechanical Specification |
Packing | 34.5*24*19 cm (10PCS/CTN ) |
Mechanical Specification
Wiring Diagram
Load vs Ambient Temperature
To extend their life, please refer to the Derating Curve and derate according to the temperature.
Warm tips :
1. All Electronic Transformer meet the harmonic emissions requirements of ANSI C82.77-10.
