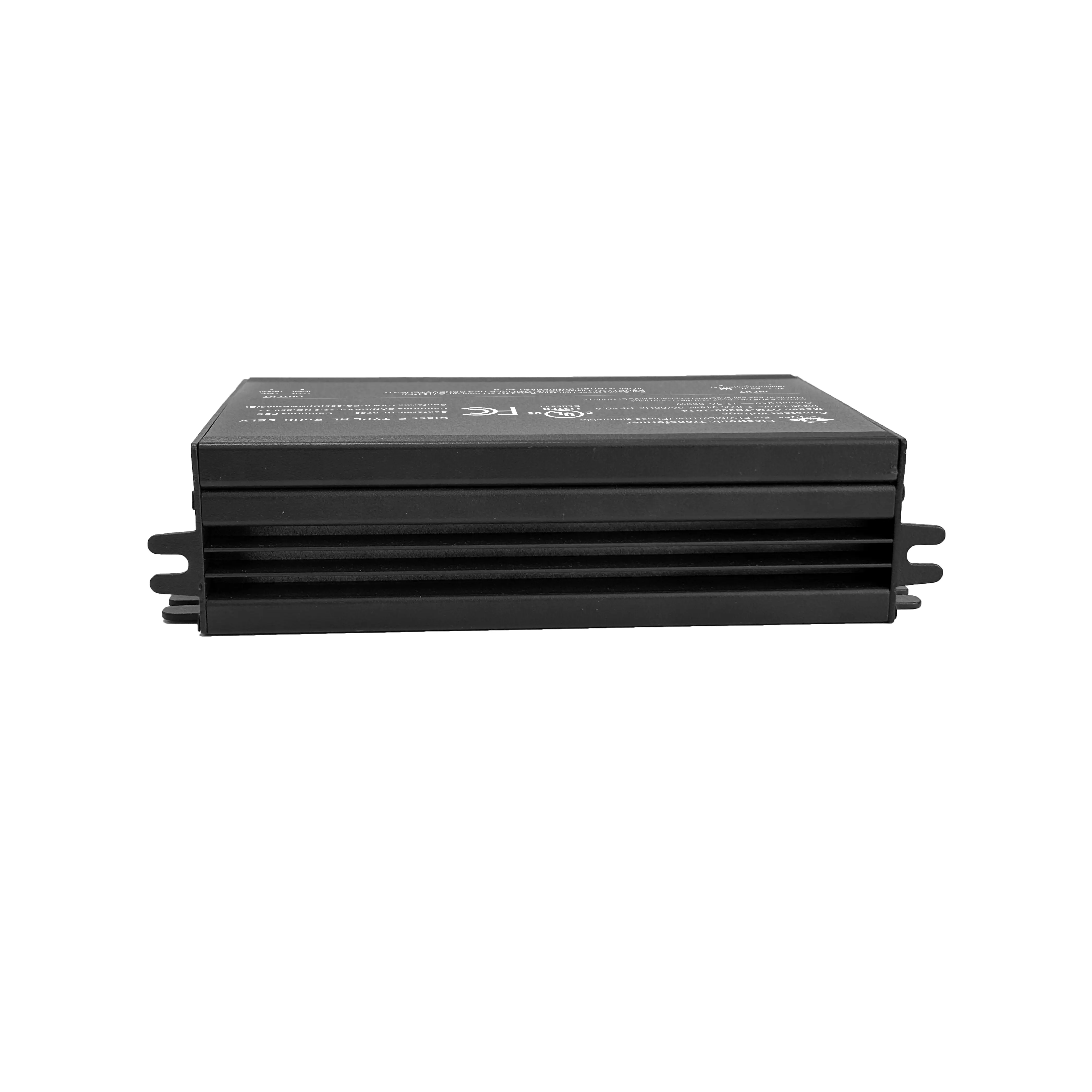

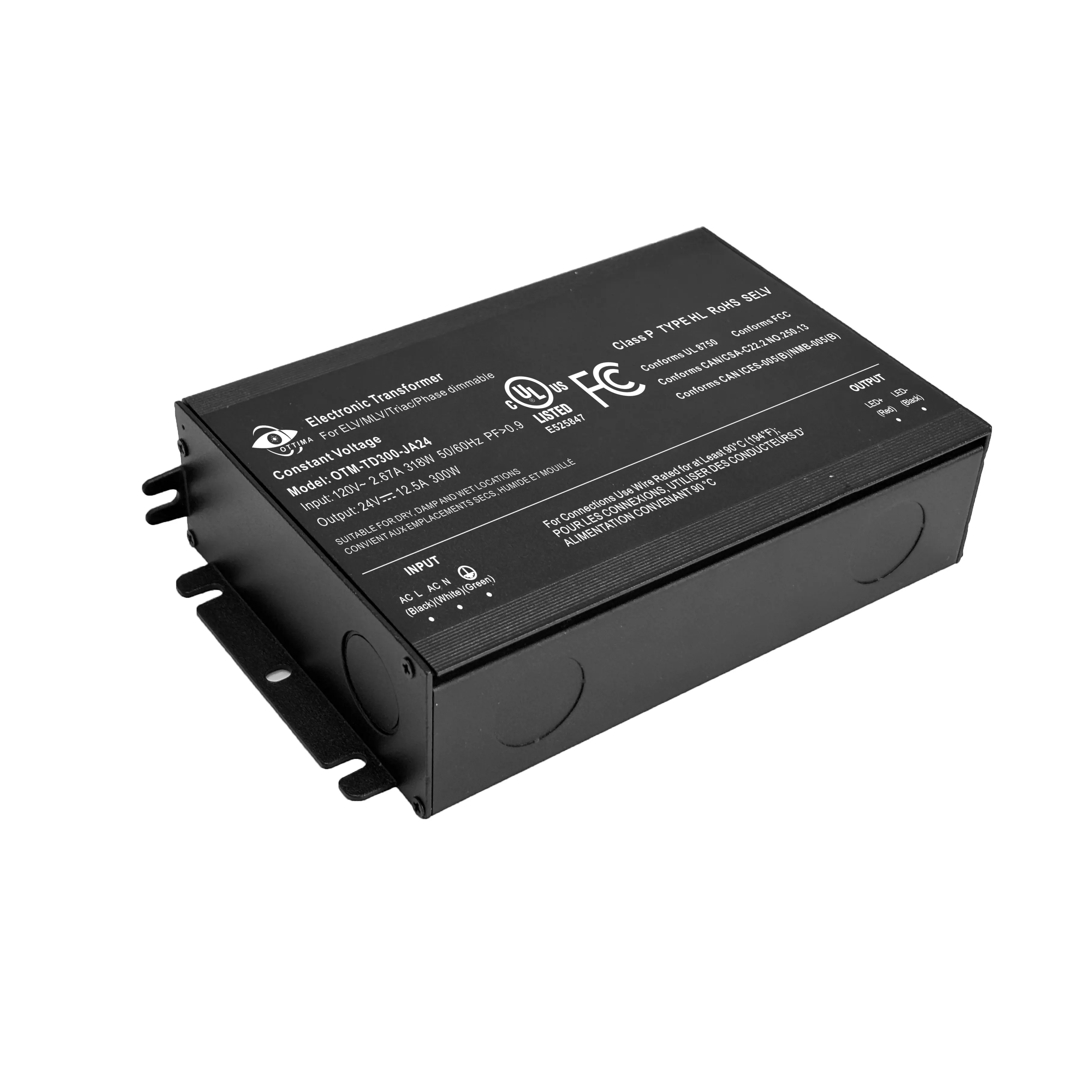

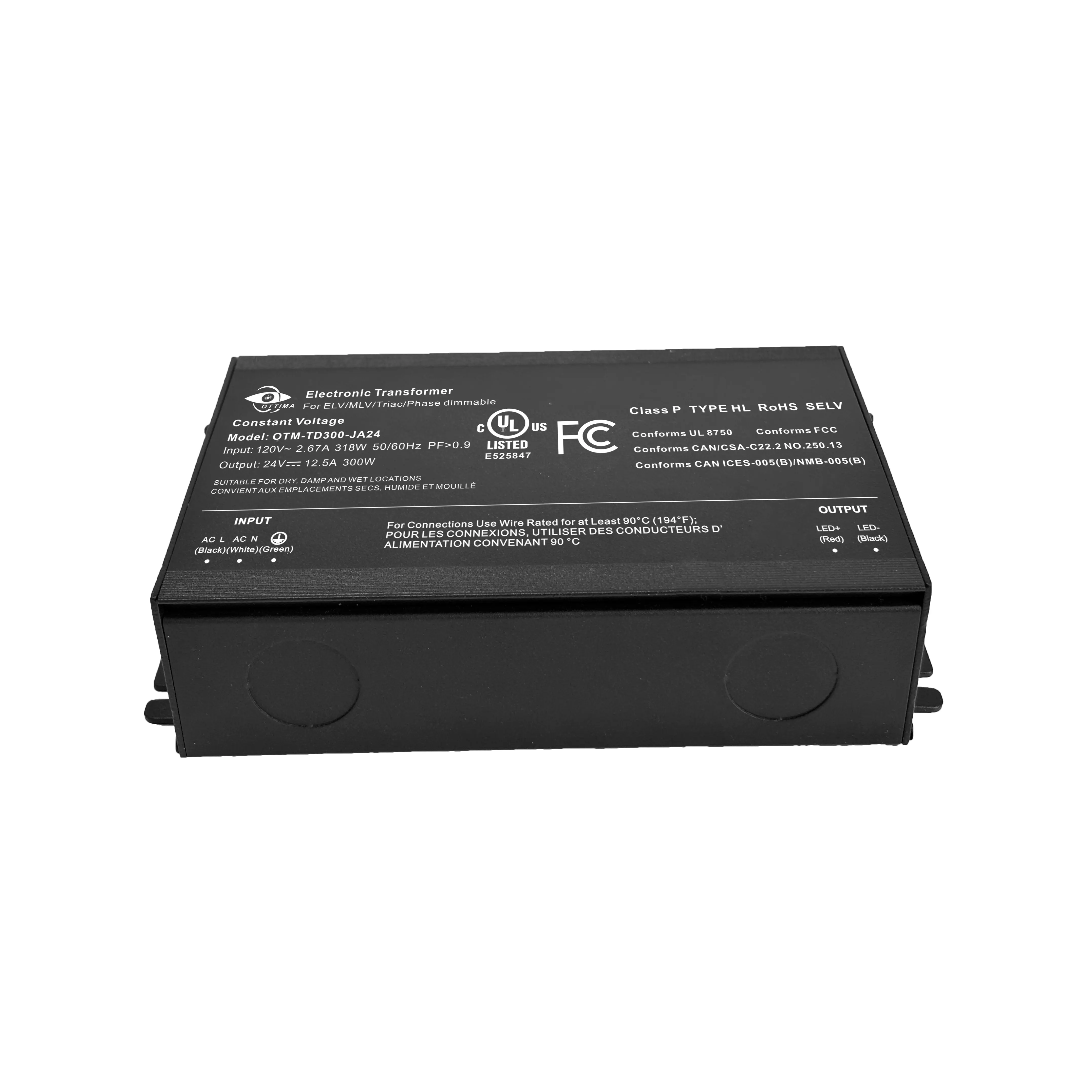

300W Triac/ELV/MLV Dimmable LED Transformer Junction Box
Power your demanding LED installations with our high-performance 300W Triac/ELV/MLV Dimmable LED Transformer. This UL-listed, 24V constant voltage driver ensures precise 0-100% dimming, seamlessly compatible with popular Triac/ELV/MLV systems like Lutron-CL and Diva series.
Experience robust and reliable dimming for extensive LED setups with our OTM-TD300-JA24 series 300W Dimmable LED Transformer. This powerful 24V constant voltage power supply is specifically engineered for seamless integration with Triac, Electronic Low Voltage (ELV), and Magnetic Low Voltage (MLV) dimming systems, offering a broad 0-100% flicker-free dimming range. Its wide compatibility extends to popular dimmers like Lutron-CL and Diva series, simplifying your lighting control.
This high-power 24V LED transformer is proudly UL Listed, Class P, Type HL, and SELV certified, ensuring top-tier safety and performance across various demanding applications. Designed for versatile installation, it operates reliably in dry, damp, and even wet locations. It features an efficient power factor of 0.94 and low total harmonic distortion (THD<20%@100% load), guaranteeing clean and stable power delivery. Crucially, its protection mechanisms for short circuit and overload require a manual re-power on to recover, ensuring system stability. With its compact size (166.4x103.5x40.4 mm) and a comprehensive 5-year warranty , this 300W dimmable LED driver offers enduring reliability for your large-scale residential and commercial LED strip and module projects.
Specification
Model Number | OTM-TD300-JA24 |
OUTPUT |
Rated Power | 300W |
Rated Voltage | 24V |
Rated Current | 12.5A |
Voltage Tolerance | ±1.5V |
INPUT |
Voltage Range | 120V |
Frequency Range | 47-63Hz |
Power Factor(typ.) | 0.94@120VAC |
Total Harmonic Distortion | THD< 20%(@100% load) |
Efficiency（Typ.） | 90%@120VAC |
AC Current（Typ.） | 2.67A |
Leakage Current | <0.5mA/ 120VAC |
PROTECTION |
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
Over Load | shut down o/p voltage, re-power on to recover after fault condition is removed |
ENVIRONMENT |
Working Temp. | Tc =-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
Working humidity | 20 ~ 95% RH non-condensing |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
Temp .coefficient | ±0.03%/℃（0～50℃） |
Vibration | 10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
SAFETY & EMC |
Safety standards | UL8750 |
Withstand voltage | I/P-O/P:1.88KVAC |
OTHERS |
Weight | 0.33/kg |
Dimension | See Mechanical Specification |
Packing | 45*25.5*24 cm (20PCS/CTN ) |
Mechanical Specification
Wiring Diagram
Load vs Ambient Temperature
To extend their life, please refer to the Derating Curve and derate according to the temperature.
Warm tips :
1. All Electronic Transformer meet the harmonic emissions requirements of ANSI C82.77-10.
