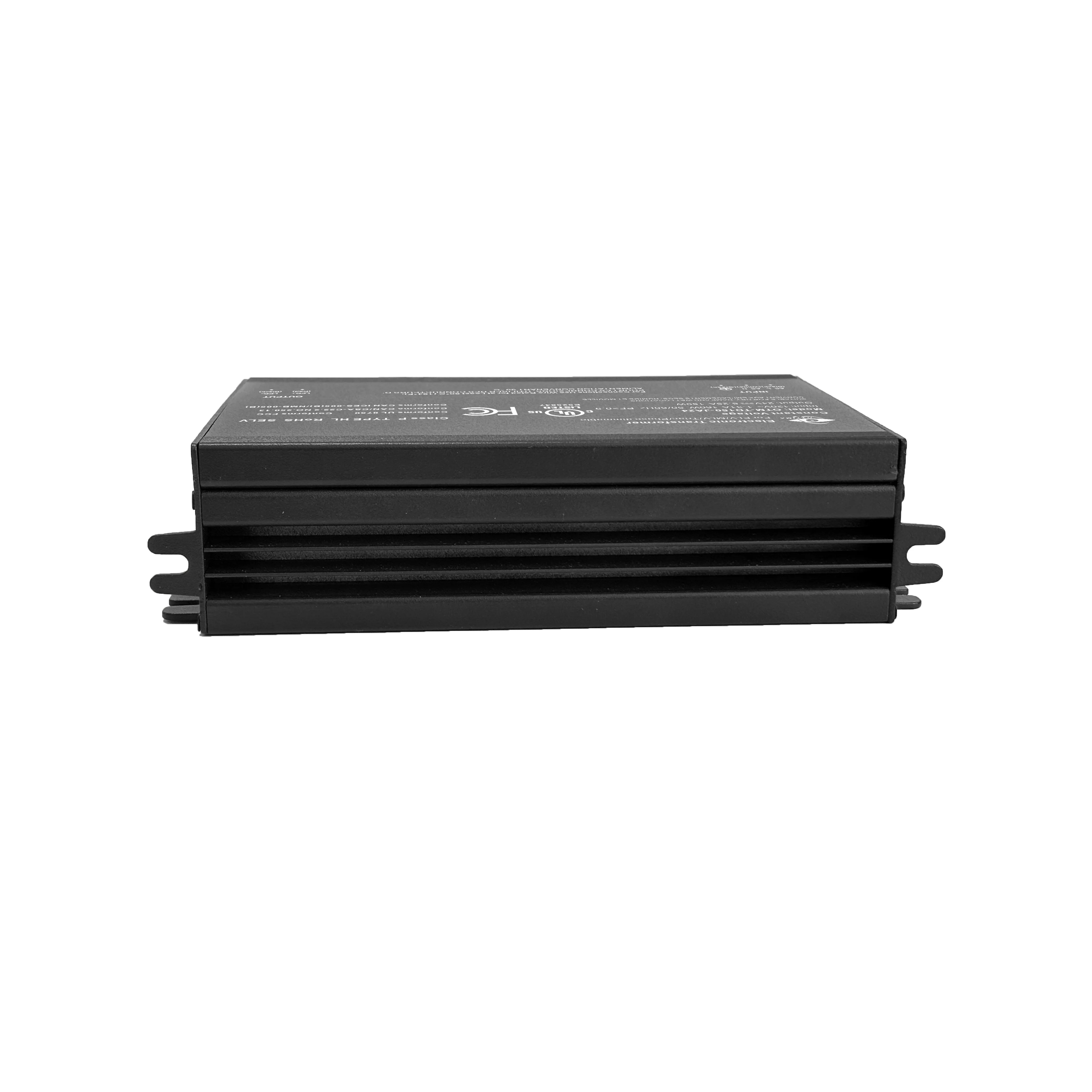

This 150w 12v/24v triac dimmable transformer Junction Box

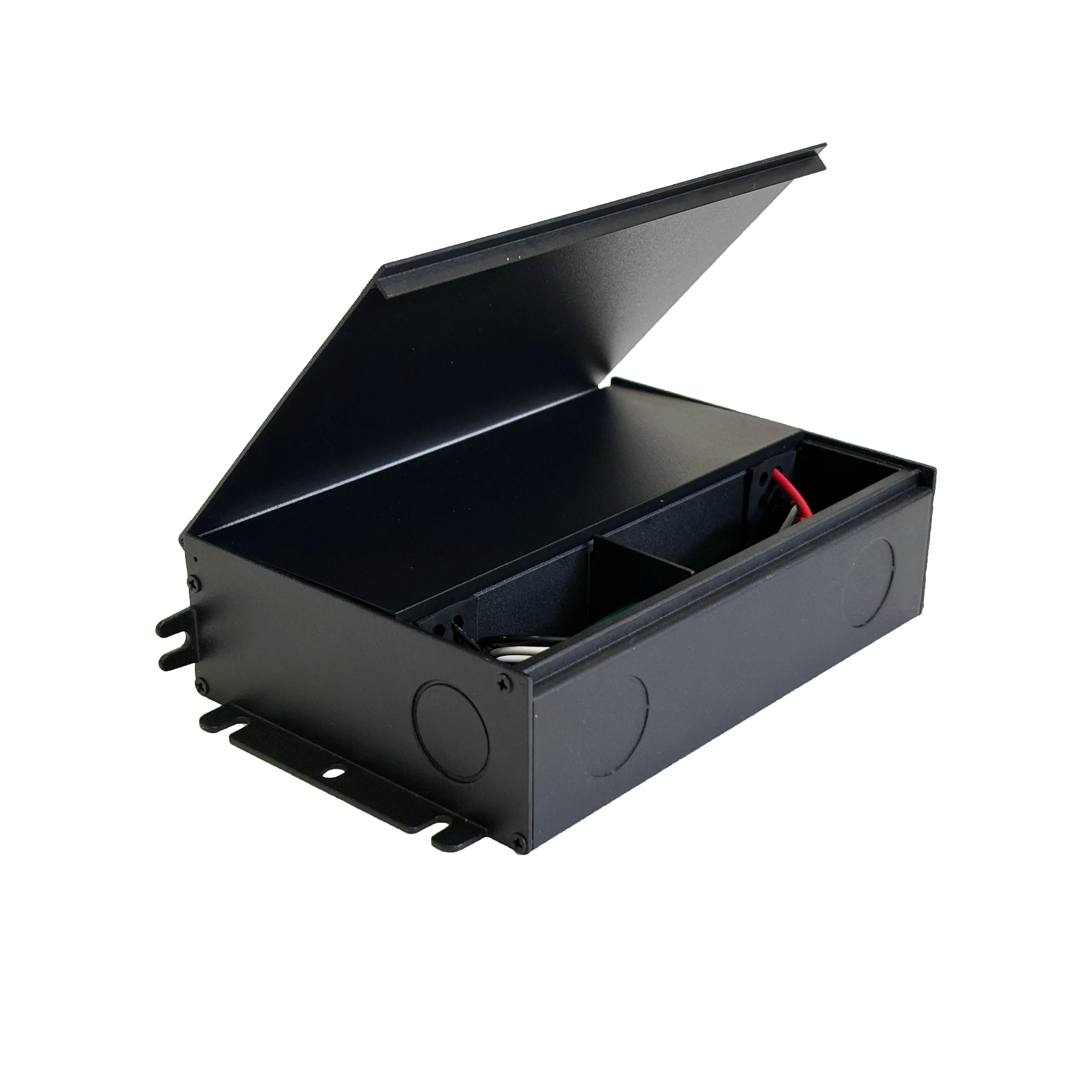

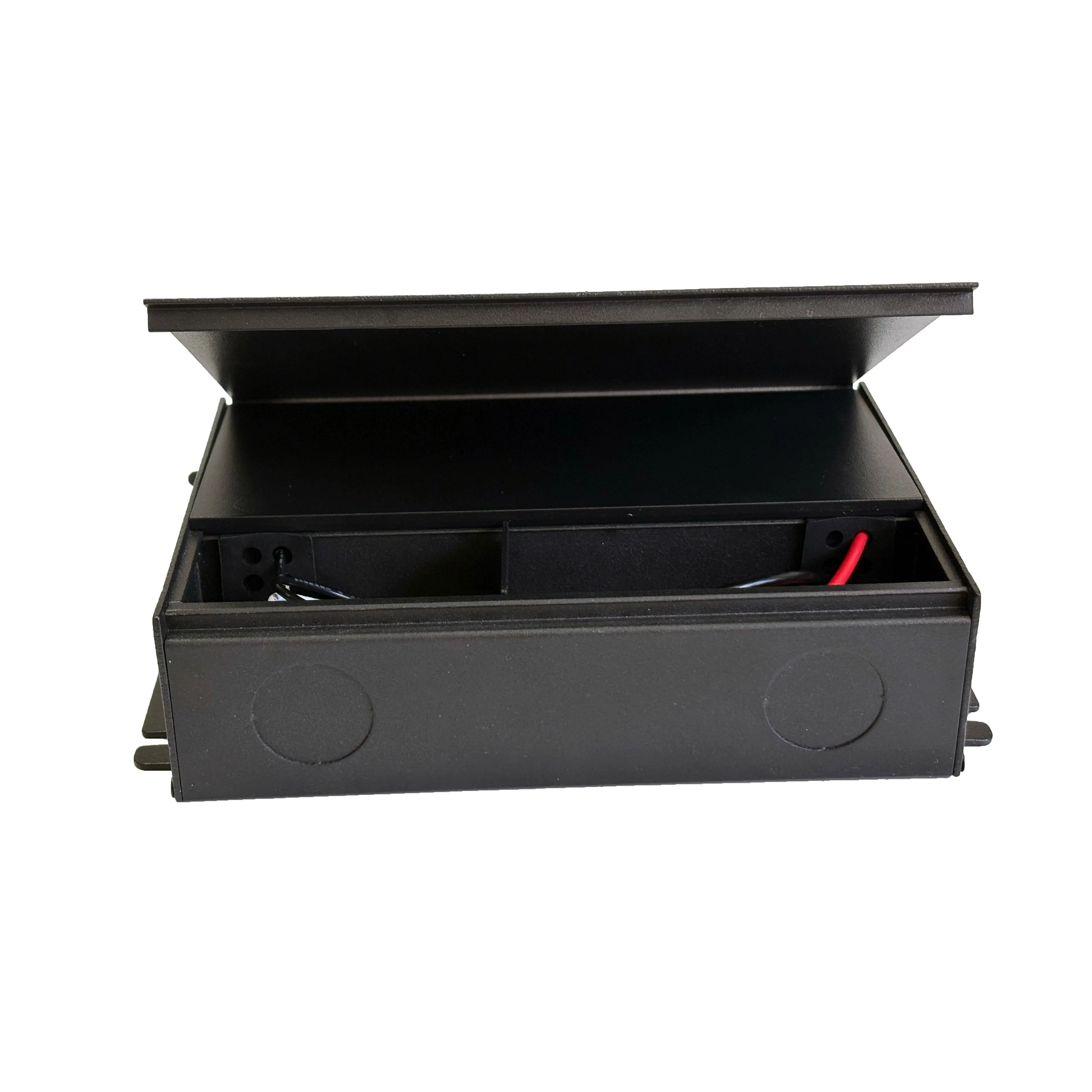

It features an easy-to-install junction box for quick integration into any lighting system and provides precise triac dimming.
Spec Sheet Download

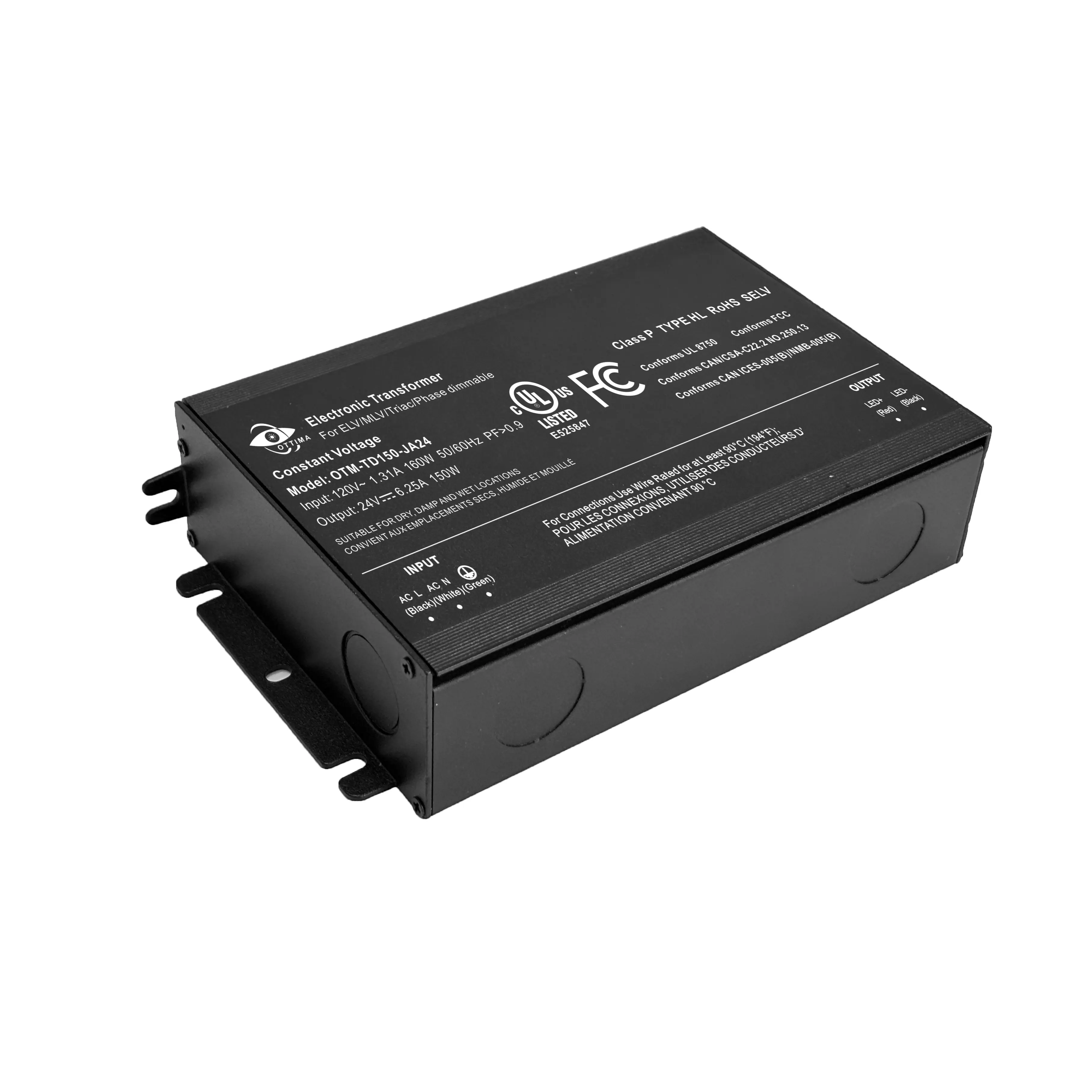

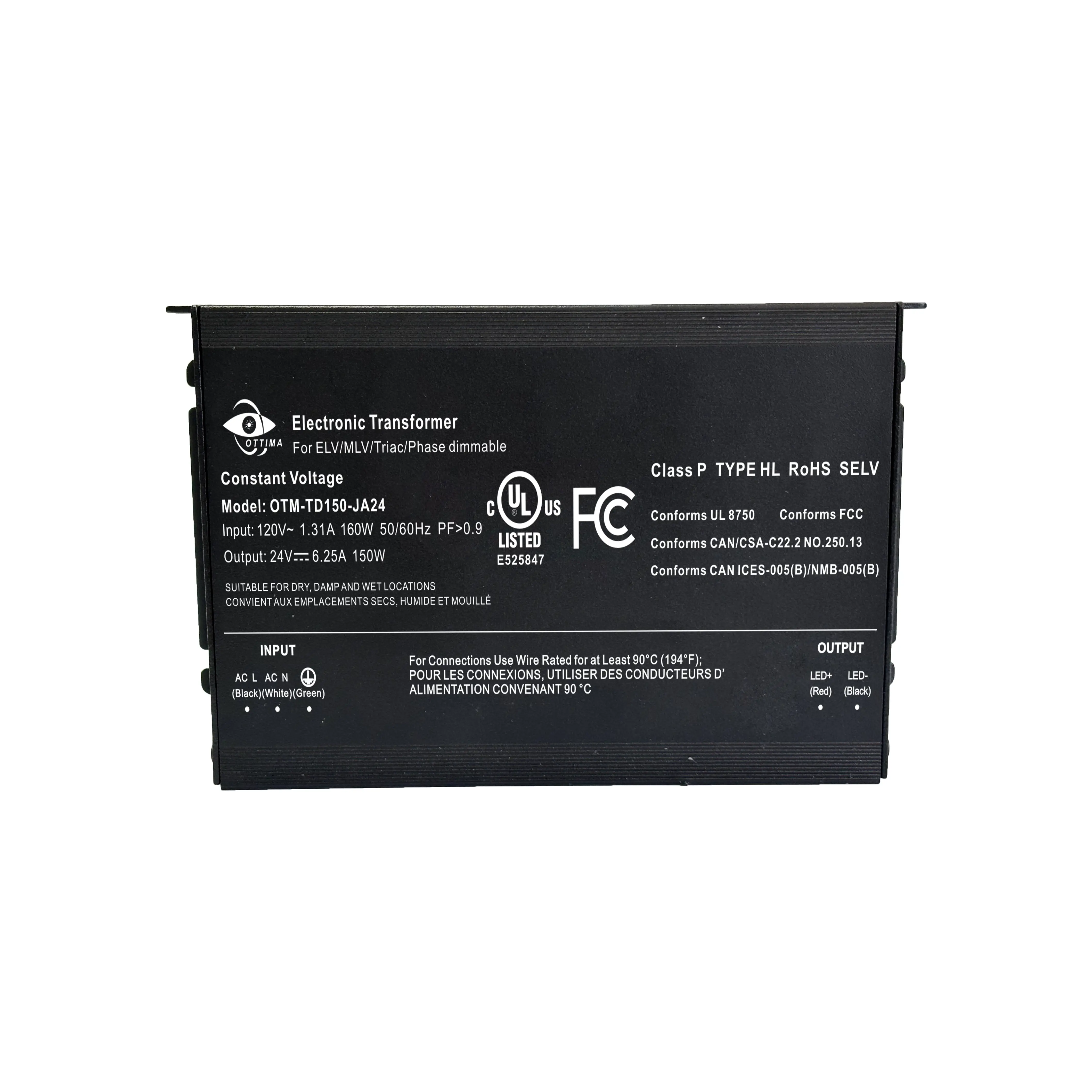

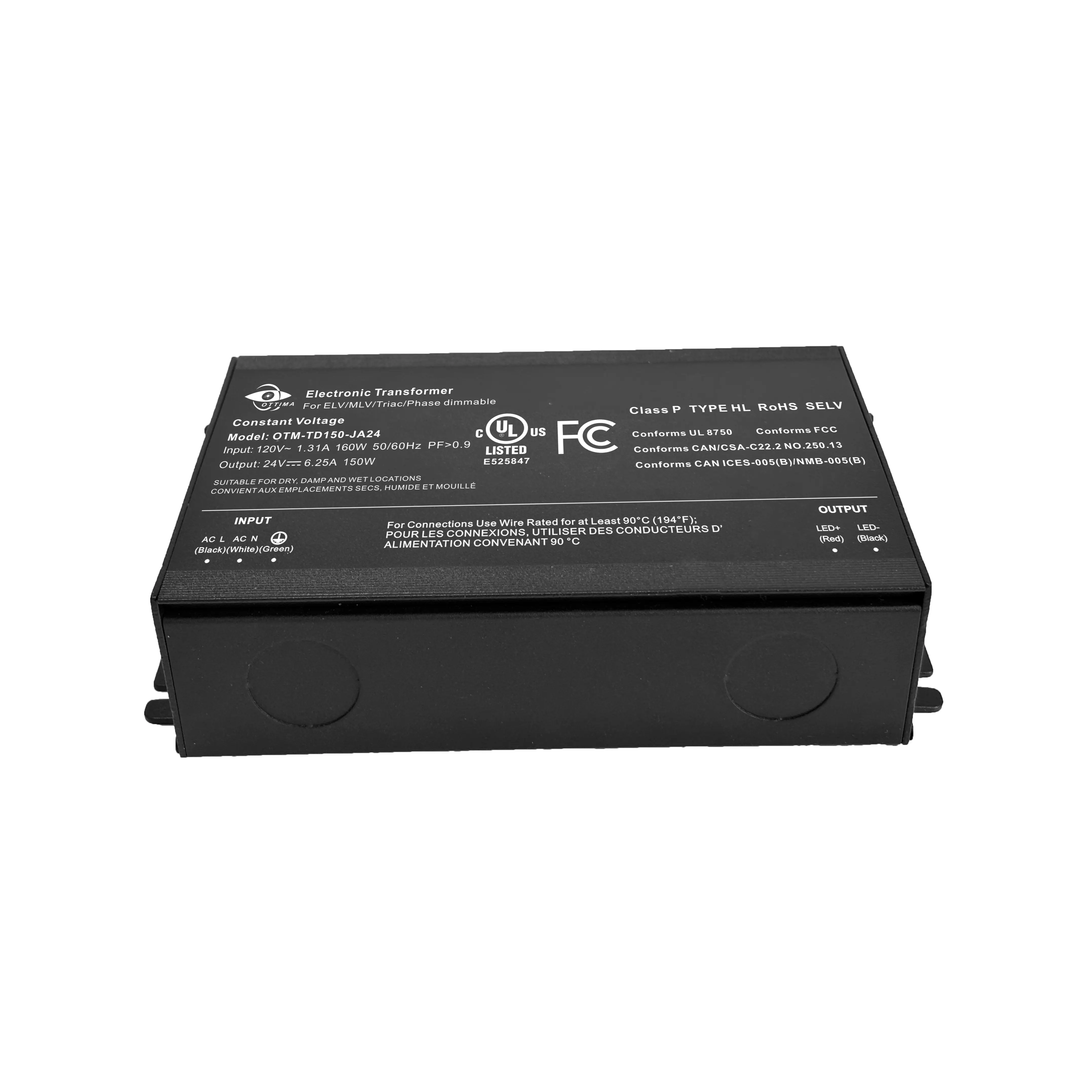

150W Triac/ELV/MLV Dimmable LED Transformer
Step into a new era of powerful and precise LED control with our OTM-TD160-JA series 160W Dimmable LED Transformer. This high-capacity, constant voltage power supply is expertly engineered for seamless compatibility with all major Triac, Electronic Low Voltage (ELV), and Magnetic Low Voltage (MLV) dimming systems, providing an extensive 0-100% dimming range. You can rely on its flawless operation with popular dimmers, eliminating the frustration of compatibility issues.
This LED transformer proudly carries comprehensive certifications including UL Listed, Class 2, Class P, and Type HL, guaranteeing utmost safety and performance in the US market. Its resilient design makes it perfectly suited for challenging environments, including dry, damp, and even wet locations, making it the go-to choice for extensive LED strip, tape, and module installations in both high-end residential and demanding commercial settings. Achieve exceptional energy efficiency with its high power factor (0.99 at full load) and minimal total harmonic distortion (THD<10% at full load), ensuring clean and stable power delivery. Enhanced with robust short circuit and overload protections, and backed by a substantial 5-year warranty, this 160W dimmable LED driver promises enduring reliability and peace of mind for your most critical lighting projects. Its compact form factor (1055452mm) allows for flexible integration.
Application:
LED strip/ LED tape/ LED module
Residential Lighting
Commercial Lighting
Specification
Model Number | OTM-TD150-JA24 |
OUTPUT |
Rated Power | 150W |
Rated Voltage | 24V |
Rated Current | 6.25A |
Voltage Tolerance | ±1.5V |
INPUT |
Voltage Range | 120V |
Frequency Range | 47-63Hz |
Power Factor(typ.) | 0.94@120VAC |
Total Harmonic Distortion | THD< 20%(@100% load) |
Efficiency（Typ.） | 90%@120VAC |
AC Current（Typ.） | 1.31A |
Leakage Current | <0.5mA/ 120VAC |
PROTECTION |
Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed |
Over Load | shut down o/p voltage, re-power on to recover after fault condition is removed |
ENVIRONMENT |
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
Working humidity | 20 ~ 95% RH non-condensing |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
Temp .coefficient | ±0.03%/℃（0～50℃） |
Vibration | 10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
SAFETY & EMC |
Safety standards | UL8750 |
Withstand voltage | I/P-O/P:1.88KVAC |
OTHERS |
Weight | 0.33/kg |
Dimension | See Mechanical Specification |
Packing | 45*25.5*24 cm (20PCS/CTN ) |
Mechanical Specification
Wiring Diagram
Load vs Ambient Temperature
To extend their life, please refer to the Derating Curve and derate according to the temperature.
Warm tips :
1. All Electronic Transformer meet the harmonic emissions requirements of ANSI C82.77-10.
